AEROTRCK GPS

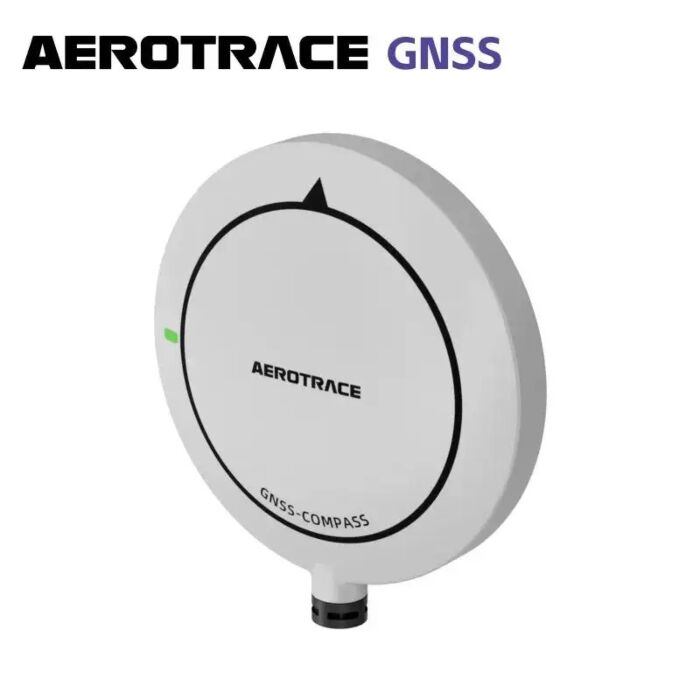

The all-new generation GNSS global positioning module — AEROTRACE AP2-GNSS GNSS-COMPASS delivers multi-star collaboration and multi-frequency anti-interference for global positioning and all-weather navigation.

Key Features

• Compact size, high precision, low power consumption
• Multi-satellite fusion engine with full satellite coverage
• Supports 5 satellite systems: GPS, BDS, IRNSS, GALILEO, GLONASS
• Up to 50 satellites for synchronous positioning
• Accuracy: horizontal 1.2 m · vertical 1.3 m · speed 0.1 m/s
• Fast startup: cold start 28 s · hot start 1 s · AGPS 1.5 s
• Control chips: QMC5883P + BT1301N

Specifications

• Product name: AP2-GNSS
• Size: 66.6 × 13.5 mm (φ60 disc)
• Weight: 60 g (cable length 60 cm)
• Number of satellites: 50

What's in the Box

• Main positioning module × 1
• 3M adhesive sticker × 1
•
