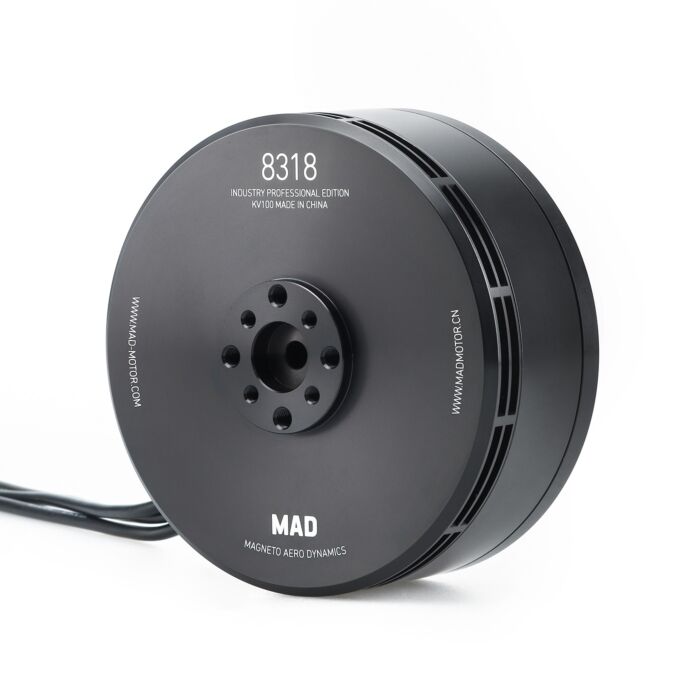

8318 IPE Agriculture Drone Motor
As low as:
$198.00
As low as:
only left for same day shipping. Order now!
8318 IPE Agriculture Drone Motor
8318 IPE
About this product
About 8318 IPE Motor
Positioning:
• Designed for heavy-lift agricultural drones in harsh environments
• Optimized for 28–32" propellers with maximum thrust of 17.5kg
• Built for high efficiency and long-term durability
• IP35-rated for water and dust resistance
Key Features:
✔ High thrust and load capacity tailored for agricultural operations
✔ Rugged construction with extended lifespan for field use
✔ IP35 protection ensures reliable performance in challenging conditions.
Perfect for:
• Agricultural spraying and seeding drones.
• Cost-effective UAV platforms requiring consistent heavy lift.
• Dusty, humid, or variable outdoor environments.
Motor Data |
|||
| Motor Model | MAD 8318 IPE V1.0 black | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:91.5 × 41 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4x4, D:40 M4x4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |

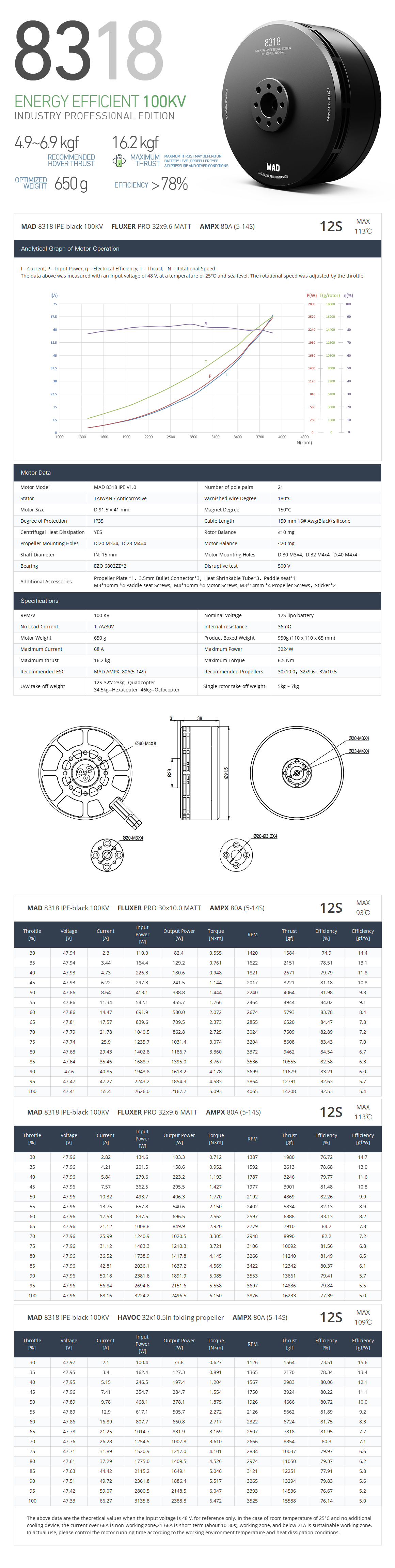

Drawing and mount holes

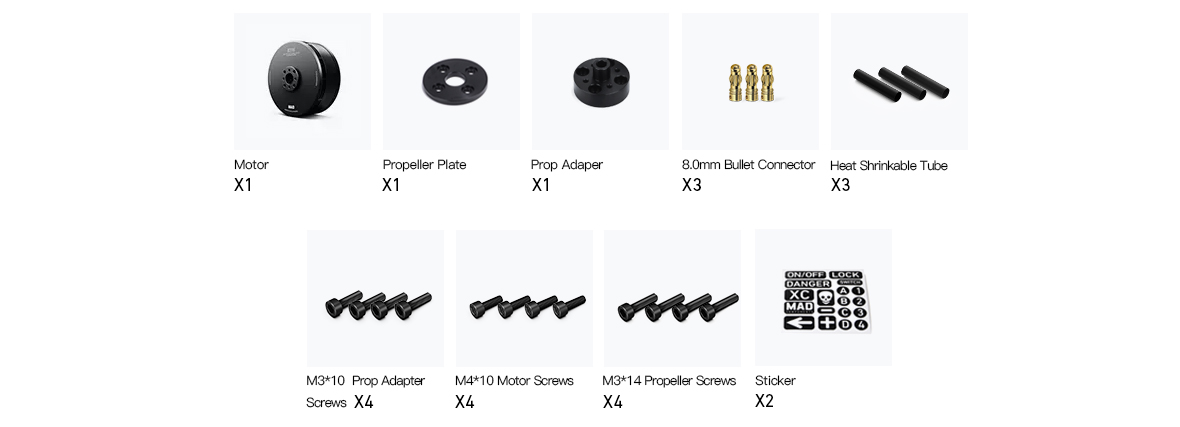

Accessories
More Information
| Manufacturer | MAD |
|---|
