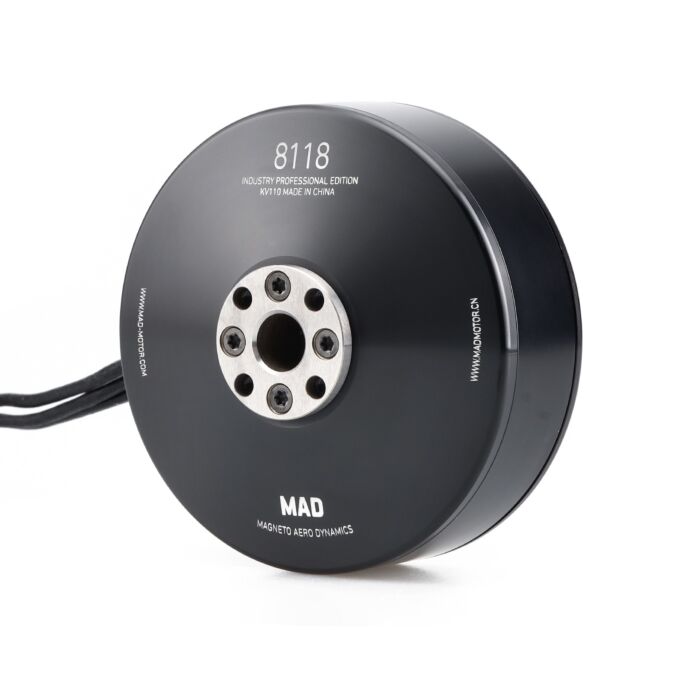

8118 IPE Drone Motor
8118 IPE
About this product
About 8118 IPE V1.0
Positioning:
• A legacy high-power motor designed for 4.5–7.5 kg single-axis loads.
• Engineered to deliver both the efficiency of the 8108 series and significantly greater thrust.
• Once favored in aerial platforms with 30–32 inch props, now commonly adopted in robotic arm systems.
Key Features:
✔ Delivers up to 17.5 kg maximum thrust per axis with large carbon fiber props.
✔ 660g single motor weight ensures a balance between strength and manageable payload.
✔ Reliable structure ideal for industrial-grade motion systems and experimental builds.
Perfect for:
• Robotic arm designs requiring high torque and stability.
• Legacy platform users transitioning to M9C12 100KV or 90KV for enhanced performance.

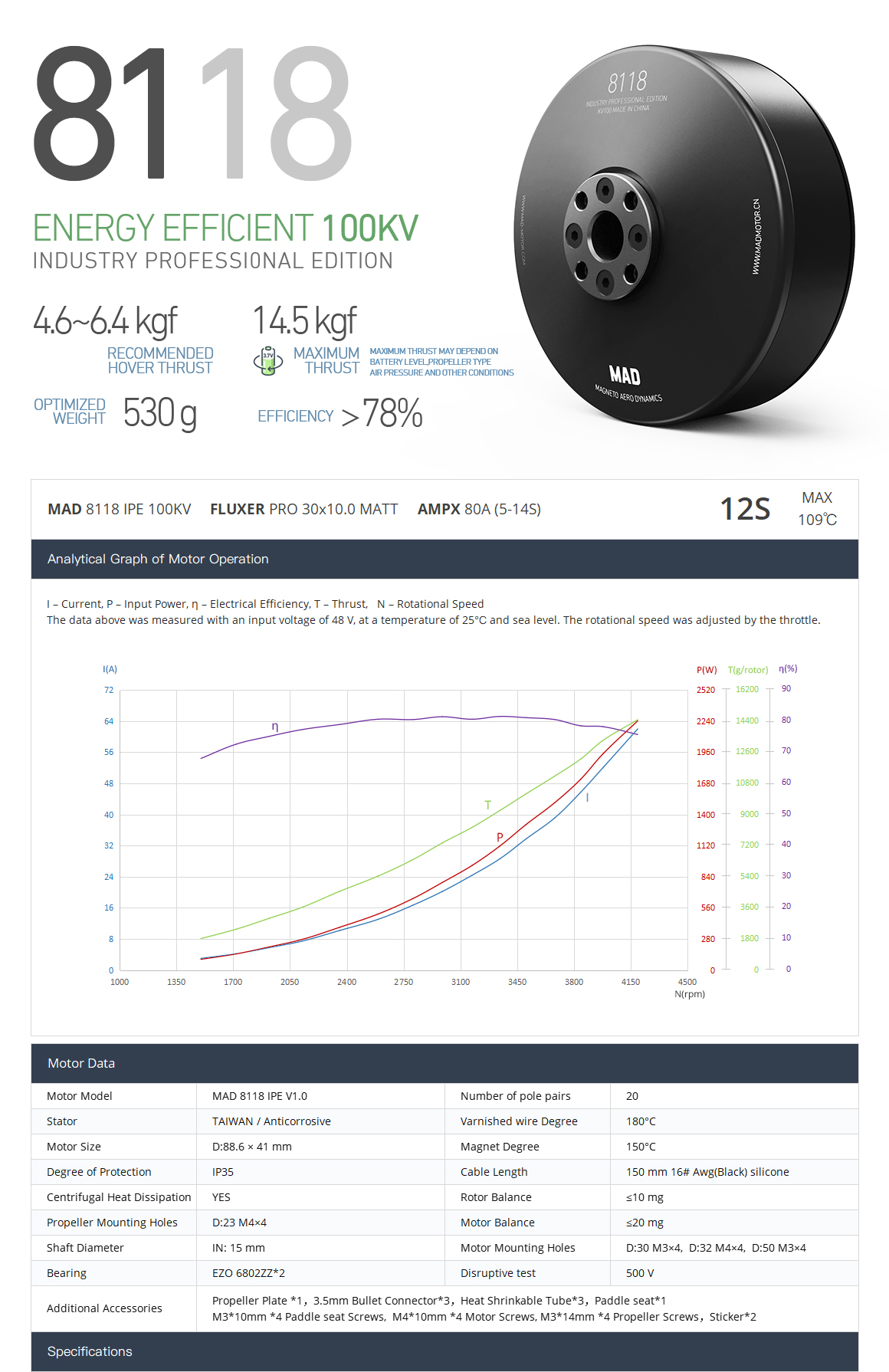

Motor Data |
|||
| Motor Model | MAD 8118 IPE V1.0 | Number of pole pairs | 20 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.6 × 41 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4×4, D:50 M3×4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

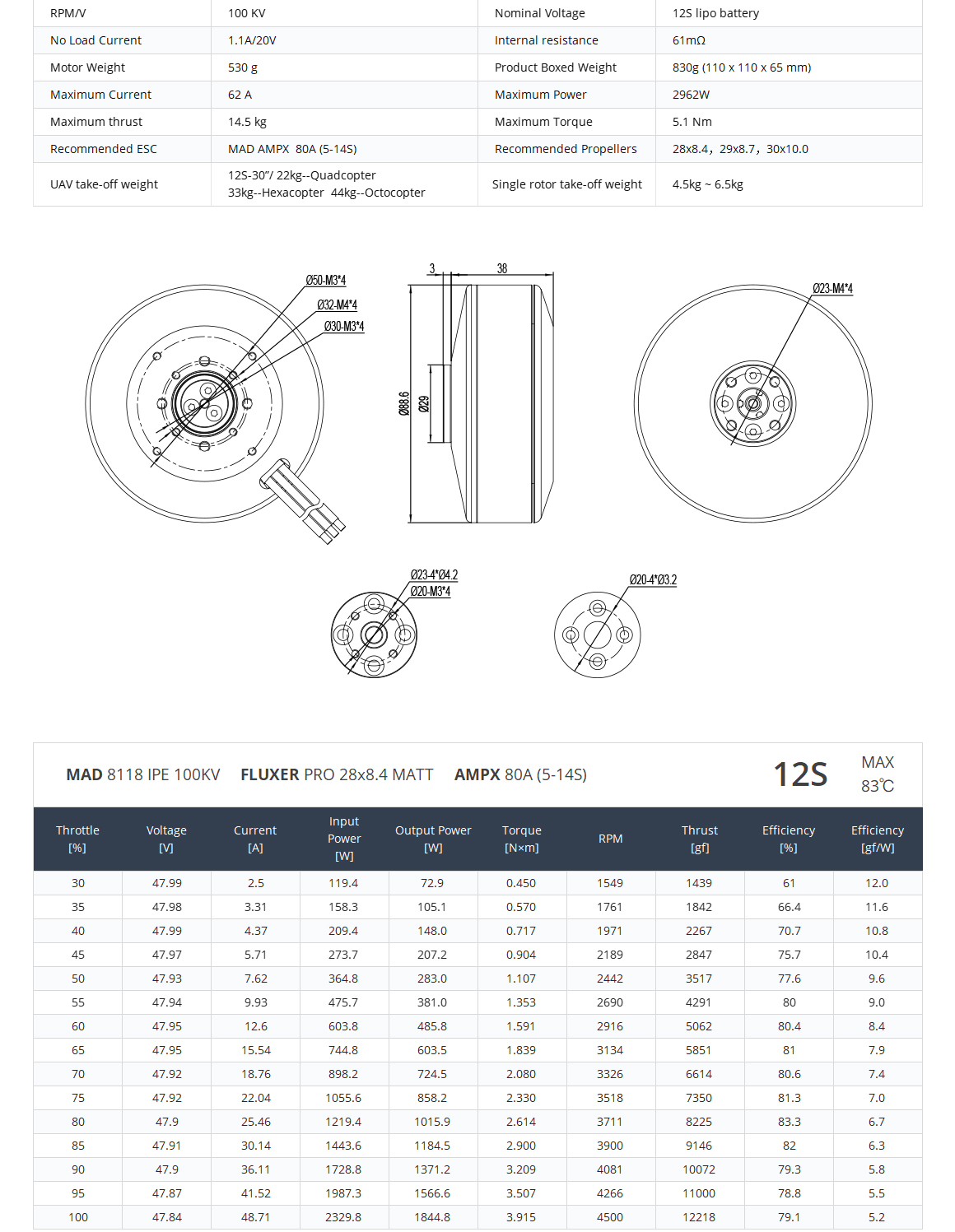

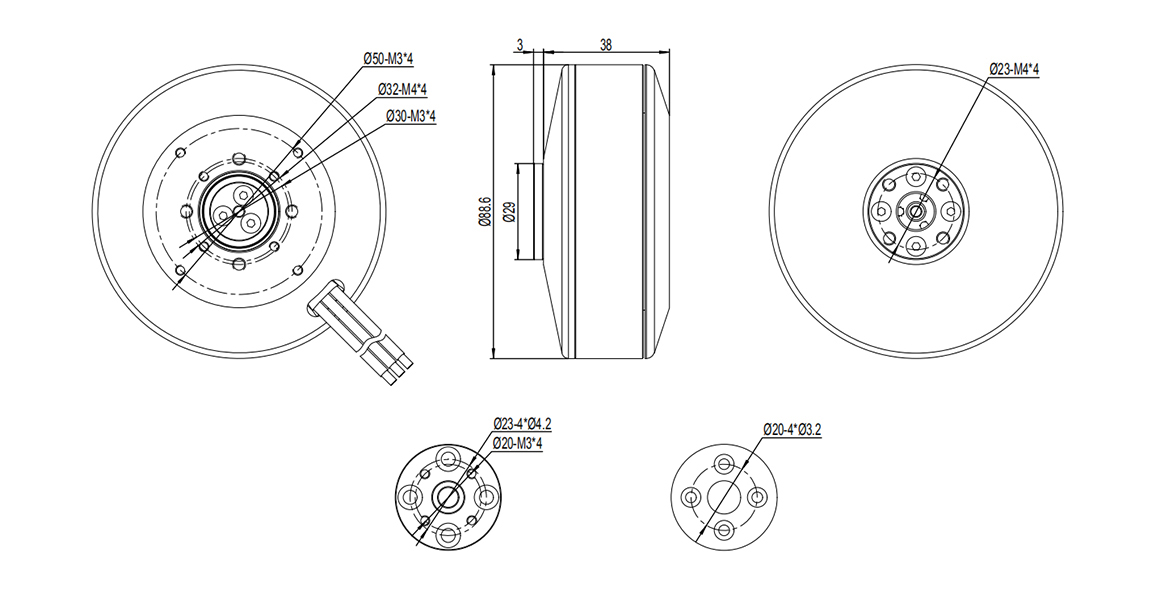

Drawing and mount holes
___________________________________________________________________________________________________________________________

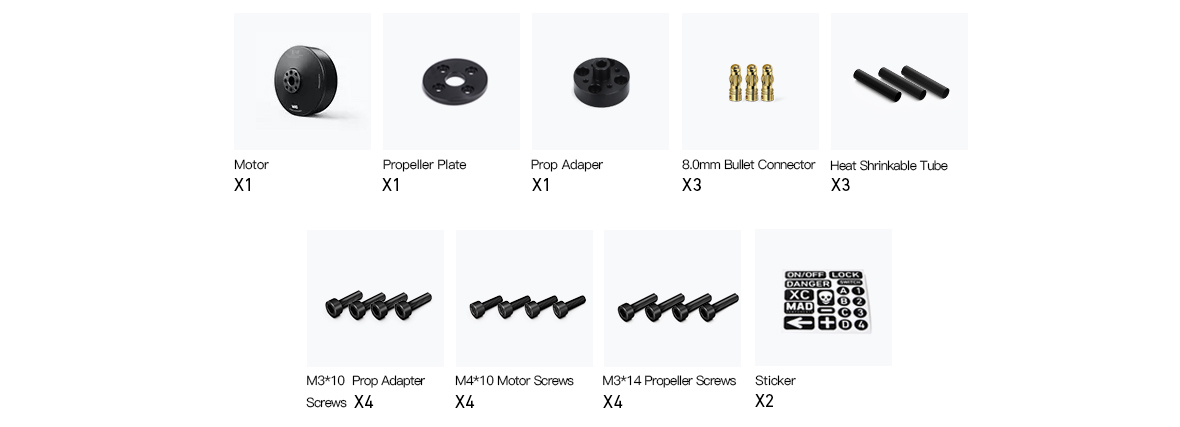

Accessories
More Information
| Manufacturer | MAD |
|---|
