8118 EEE Drone Motor
8118 IPE
About this product

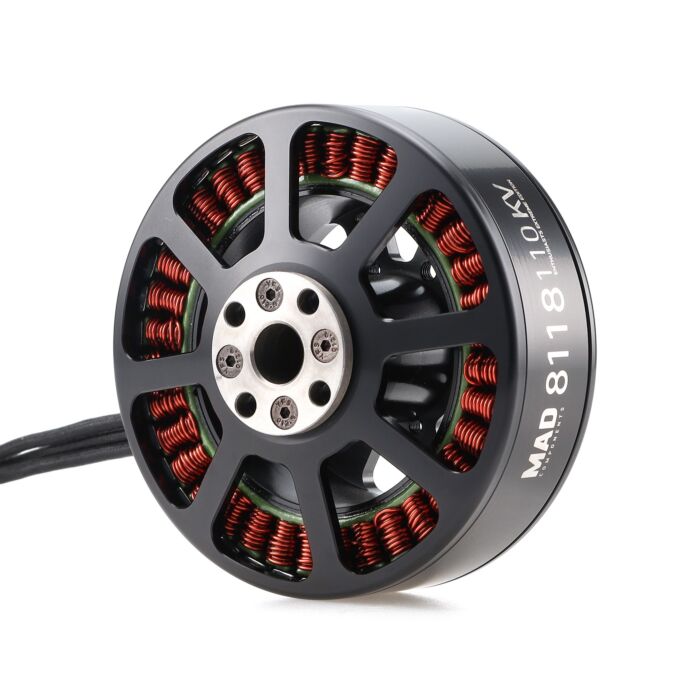

About 8118 EEE V1.0
Positioning:
• The MAD 8118 EEE is designed for single-axis loads of 4500–6500g.
• It is optimized for use with 28–30 inch carbon fiber propellers.
• Weighing 620g per motor, it delivers a maximum thrust of up to 14.5kg per axis.
Key Features:
✔ Reliable structure with proven performance in various industrial prototypes
✔ Designed to meet demand for both efficiency and enhanced thrust
✔ Compatible with custom applications where compact yet powerful motors are required
Perfect for:
• Robotic arm prototypes and experimental UAV systems.
• Users transitioning to M9C12 100KV or 90KV models for upgraded performance.

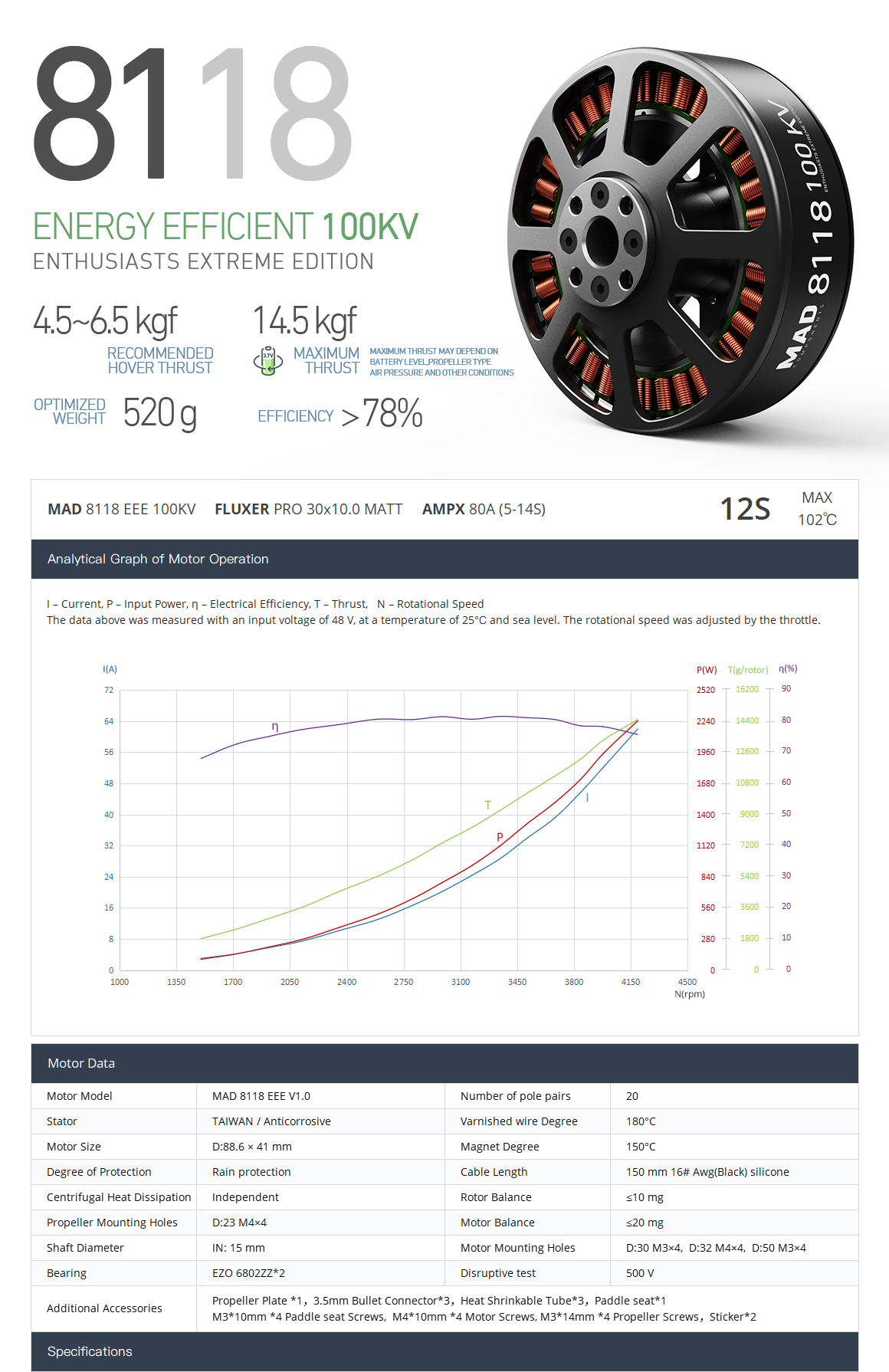

Motor Data |
|||
| Motor Model | MAD 8118 EEE V1.0 | Number of pole pairs | 20 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.6 × 41 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | tD:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4×4, D:50 M3×4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

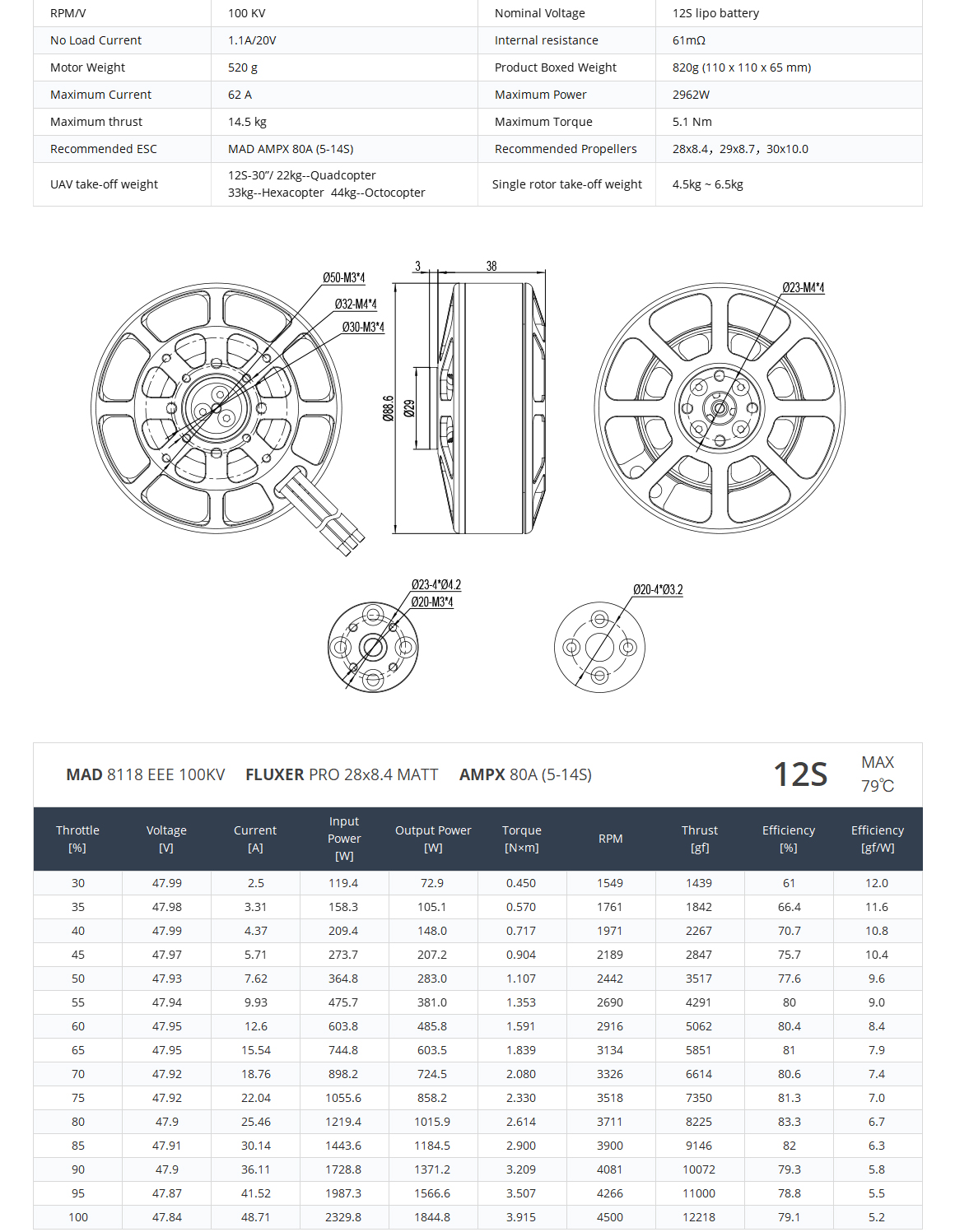

Drawing and mount holes
___________________________________________________________________________________________________________________________

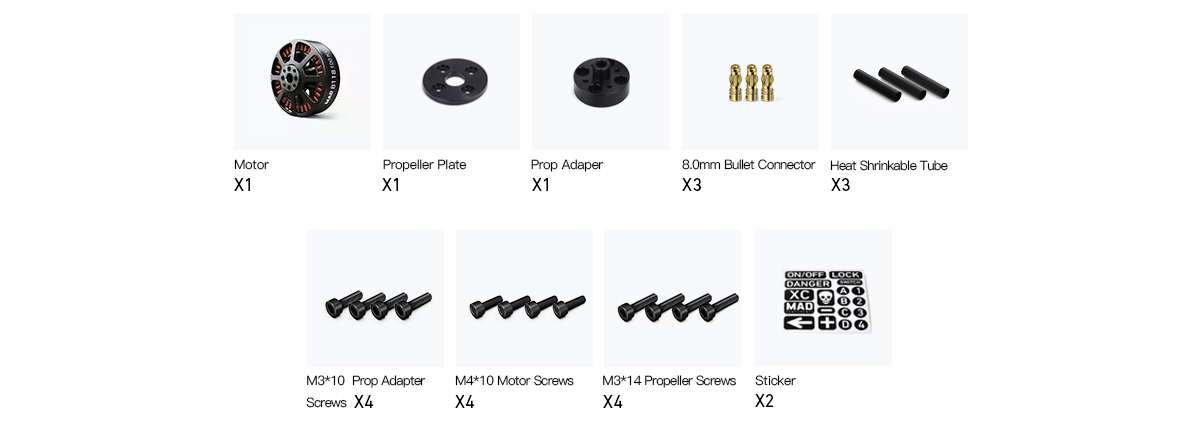

Accessories
More Information
| Manufacturer | MAD |
|---|
