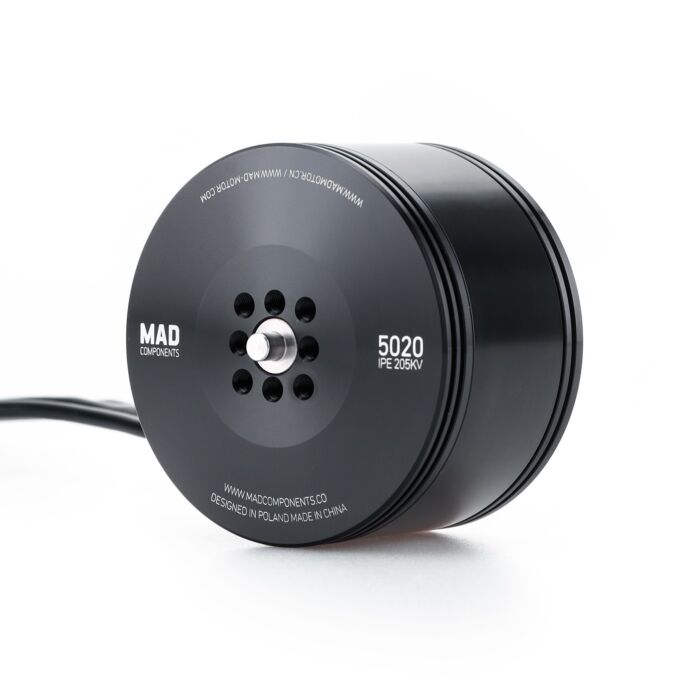

5020 IPE V3.0 EVTOL Drone Motor
As low as:
$119.00
As low as:
only left for same day shipping. Order now!
5020 IPE V3.0 EVTOL Drone Motor
Sustained thrust:
2~3.4kg
Max thrust:
8kg
Support voltage:
12S
Weight:
290g
| Specification |
|||||||||
| Motor Model |
MAD 5020 IPE V3.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 41.3 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4, D:15 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V |
||||||

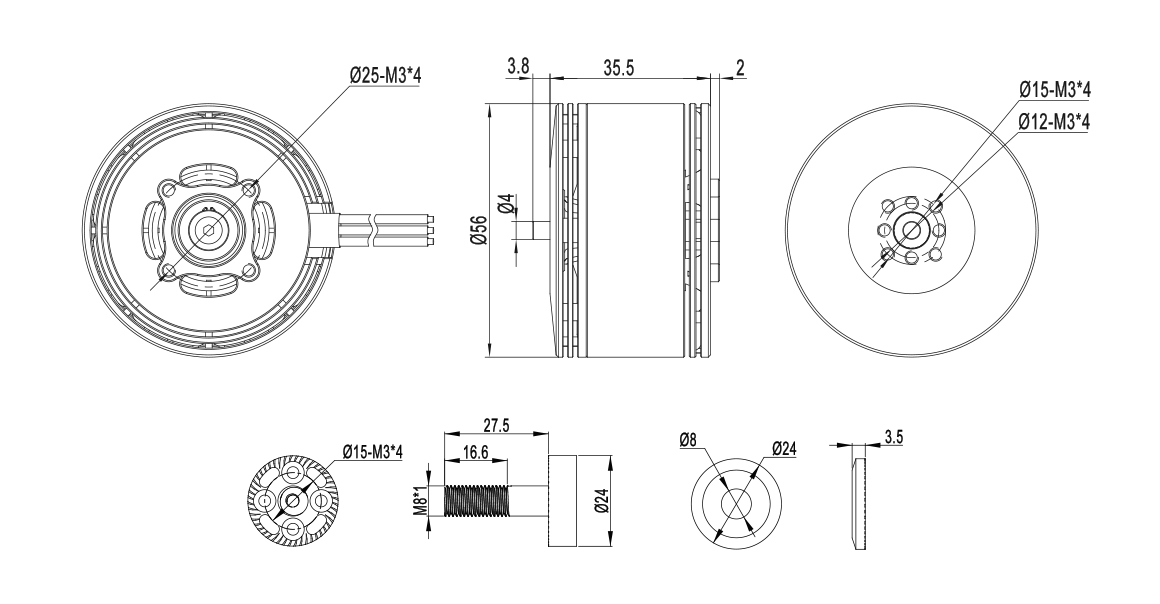

Drawing and mount holes |
|||||||||
