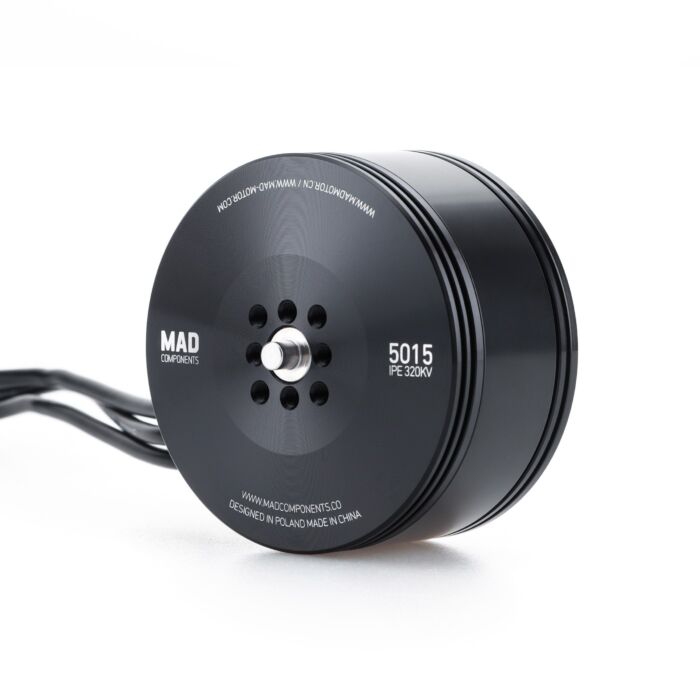

5015 IPE V3.0 eVTOL Drone Motor

As low as: $108.00

only left for same day shipping. Order now!

5015 IPE V3.0

About this product

About 5015 IPE V3.0 eVTOL

Powering the Future of Drones & eVTOLs

Unmatched Performance for Demanding Applications

Thrust-Optimized KV Options

270KV/320KV – The go-to motors for 8-16kg eVTOLs, balancing efficiency and power
150KV – Ideal for heavy quadcopters (8-14kg takeoff weight) with smooth, controlled lift

Long-Range Endurance

Optimized electromagnetic design reduces power consumption by 15% vs. competitors
Low-RPM high-torque operation extends flight times for inspection and mapping missions

Built for Industrial-Grade Reliability

High-temp windings – Sustain peak performance in continuous operation
Precision-balanced rotors – Minimize vibration for stabilized camera/sensor payloads
Corrosion-resistant construction – Reliable performance in harsh environments

Why Leading Drone Manufacturers Choose the 5015 Series

✔ Proven in 10,000+ flight hours across commercial and industrial applications
✔ compatibility with 6S-12S ESCs
✔ Adaptable to any multirotor configuration – quads, hexacopters, octocopters, and custom eVTOL designs.

Specification
Motor Model	MAD 5015 IPE V3.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:56 × 36.3 mm	Magnet Degree	150°C
Degree of Protection	IP45	Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×4, D:15 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:25 M3×4
Bearing	EZO 696ZZ*2	Disruptive test	500 V

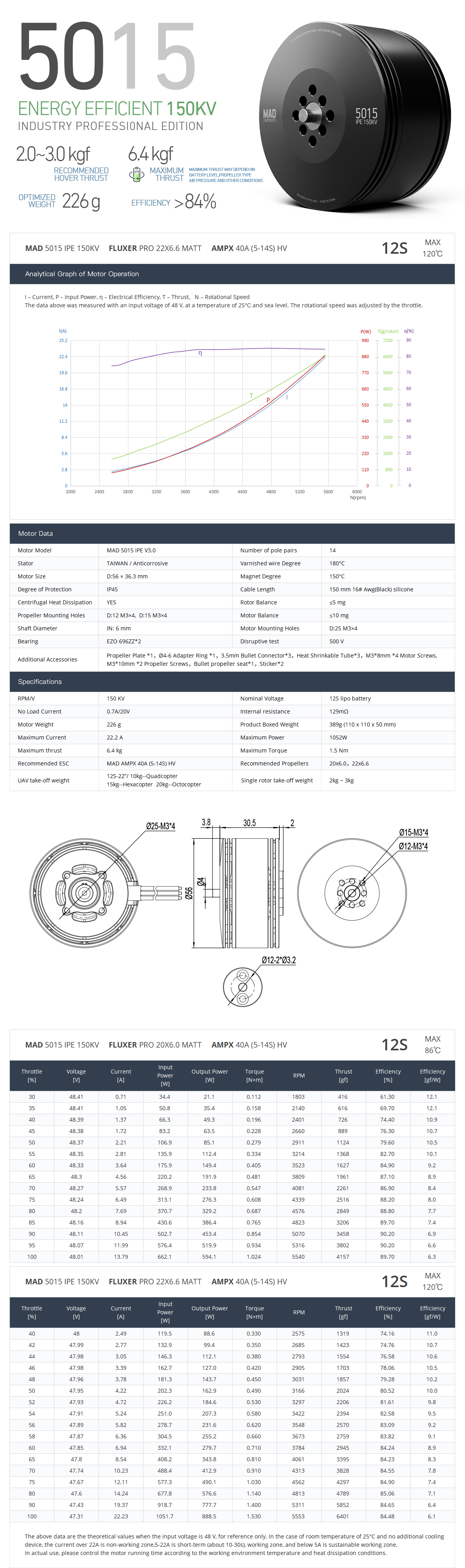

___________________________________________________________________________________________________________________________ Drawing and mount holes
