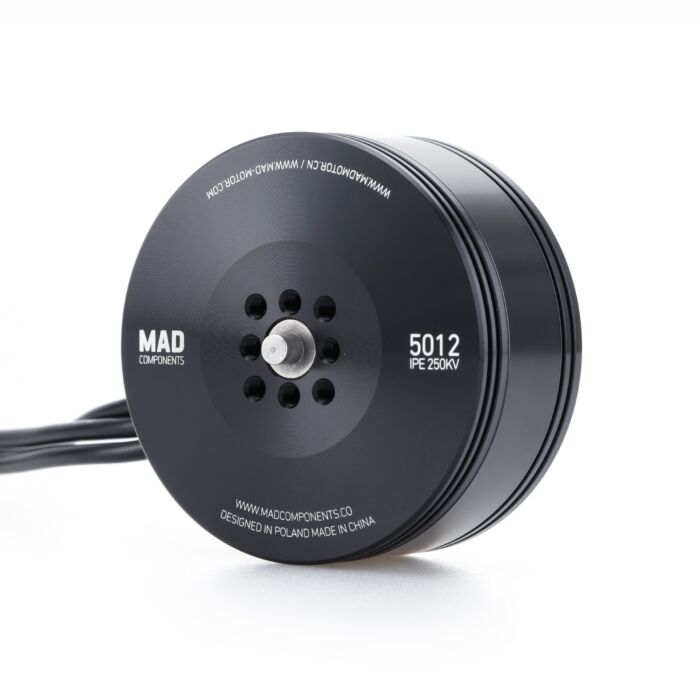

5012 IPE V3.0 Drone Motor

About 5012 IPE V3.0

Key Specifications
Single rotor load range: 1500-3000g
Continuous working thrust: suitable for long-term stable flight or industrial load tasks (such as spraying, mapping), taking into account efficiency and heat dissipation.
Application scenario: Higher load limit than MAD5010 IPE (1300-2500G), more suitable for jobs requiring higher redundancy or dynamic adjustment.
Single  maximum thrust: 6.1kg
Instantaneous explosive force: short-term peak thrust (such as wind disturbance resistance, emergency climb), but to avoid continuous overload operation leading to demagnetization or overheating.

Comparative boost: 17% more than the MAD5010 EEE's 5.2kg peak for more demanding power needs.

propeller compatibility: 18-22 inch carbon fiber propeller
Efficiency balance: Reduced blade range (the MAD5010 supports 16-24 inches), focused on medium and large blade optimization, reducing vibration and energy loss.

Typical collocation:

18 inch paddle: High speed response, suitable for high-speed maneuvering or dynamic flight (such as FPV racing).

22 inch propeller: low speed and high torque, improve energy efficiency, extend heavy duty mission life.

Motor weight: 200g/ pc

Specification
Motor Model			MAD 5012 IPE V3.0					Number of pole pairs	14
Stator			Anticorrosive					Varnished wire Degree	180°C
Motor Size			D:56 × 33.3 mm					Magnet Degree	150°C
Degree of Protection			IP45					Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation			YES					Rotor Balance	≤5 mg
Propeller Mounting Holes			D:12 M3×4,  D:15 M3×4					Motor Balance	≤10 mg
Shaft Diameter			IN: 6 mm					Motor Mounting Holes	D:25 M3×4
Bearing			EZO 696ZZ*2					Disruptive test	500 V

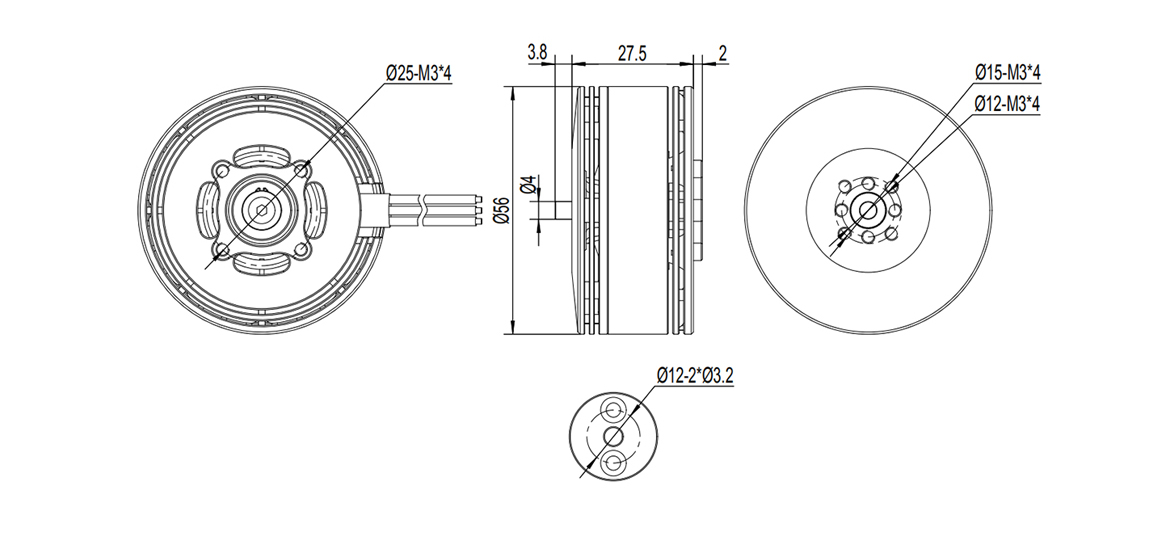

___________________________________________________________________________________________________________________________ Drawing and mount holes

___________________________________________________________________________________________________________________________

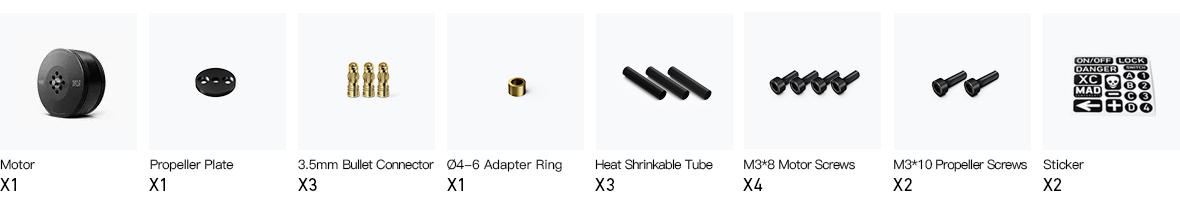

Accessories
