5010 EEE V2.0 Drone Motor

As low as: $84.00

only left for same day shipping. Order now!

5010 EEE V2.0 Drone Motor

5010 EEE Drone Motor

About this product

Key Specifications & Advantages

⚡ Thrust-Optimized Performance

Continuous Thrust: 1300–2500g per motor (Ideal for stable, efficient operation)
Peak Burst Thrust: 5200g per rotor (For critical maneuvers or emergency recovery)
Propeller Range: 16–24" carbon fiber
- 24" Props: Max efficiency for heavy lifting
- 16" Props: Agile response for high-speed applications

Built for Industrial Durability

Ultralight Design: Just 162g/motor (Reduces dead weight without sacrificing power)
Aerospace-Grade Materials: Precision bearings, reinforced alloy housing
Thermal Resilience: Optimized for sustained high-load operation

Design Considerations
- Thrust-to-Weight Ratio:
- For a quadcopter: Total max thrust = 4 × 5200g = 20,800g.
- Aim for a **total drone weight** (including payload) ≤ 10,400g (2:1 ratio) for agility or ≤ 14,560g (1.43:1) for heavy lift.
- Example: A 10kg drone could achieve 2:1 thrust-to-weight, enabling aggressive maneuvers.
Power System:
ESC: Likely requires 40–60A ESCs (check motor specs for exact current draw at max thrust).
Battery: High-voltage (6S–12S LiPo) to balance RPM and efficiency. A 6S 10,000–20,000mAh pack is typical for endurance.
Thermal Management:
- Ensure adequate cooling (e.g., airflow, heat sinks) if operating near max thrust intermittently.
Use Cases
Cinematography: Stable payload capacity for cameras/gimbals.
Agriculture: Spraying systems or sensor payloads.
Delivery Drones: Capable of lifting packages up to ~8–10kg (depending on frame/battery weight).

Optimization Tips
Propeller Selection: Test 18–22" props to balance thrust and efficiency for your specific payload.
Battery Choice: Higher capacity (mAh) increases flight time but adds weight—simulate trade-offs.
Frame Design: Ensure rigidity to handle 24" props and motor vibrations.
By aligning the MAD5010 EEE's capabilities with these considerations, you can build a robust UAV tailored to demanding applications.

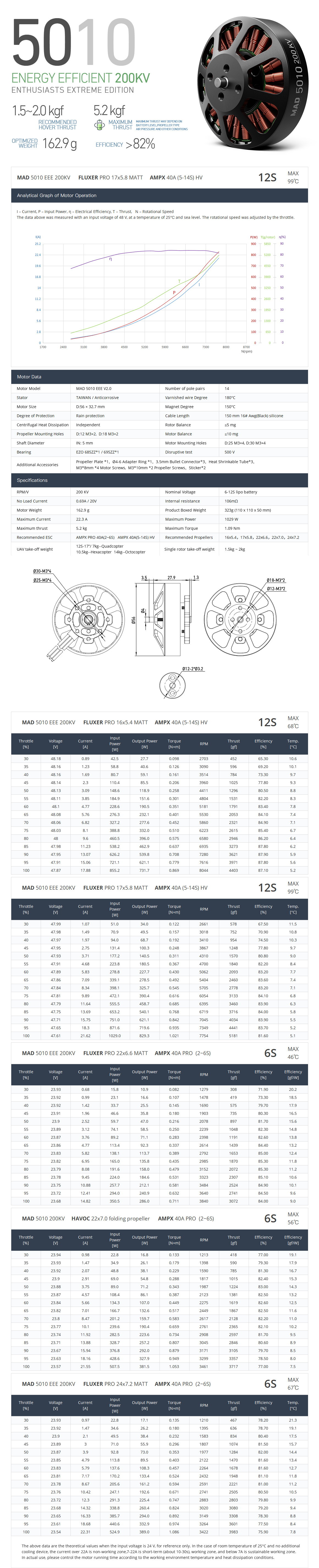

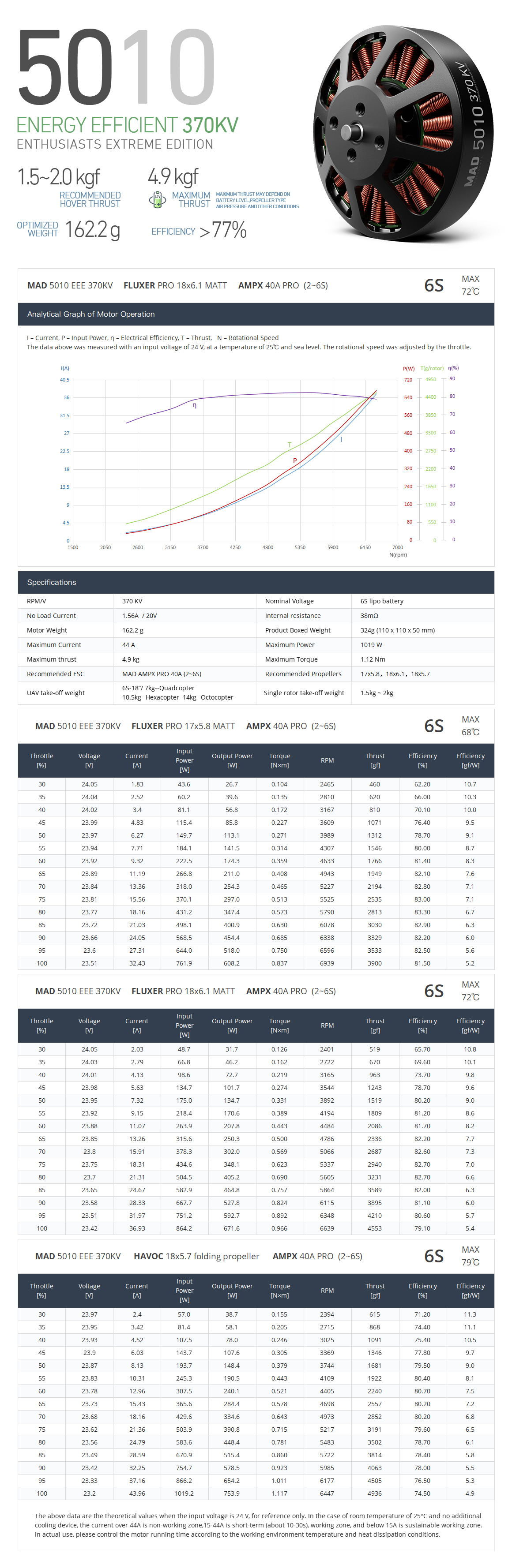

Specification
Motor Model	MAD 5010 EEE V2.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:56 × 32.7 mm	Magnet Degree	150°C
Degree of Protection	Rain protection	Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	Independent	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×2, D:18 M3×2	Motor Balance	≤10 mg
Shaft Diameter	IN: 5 mm	Motor Mounting Holes	D:25 M3×4, D:30 M3×4
Bearing	EZO 685ZZ1 / 695ZZ1	Disruptive test	500 V

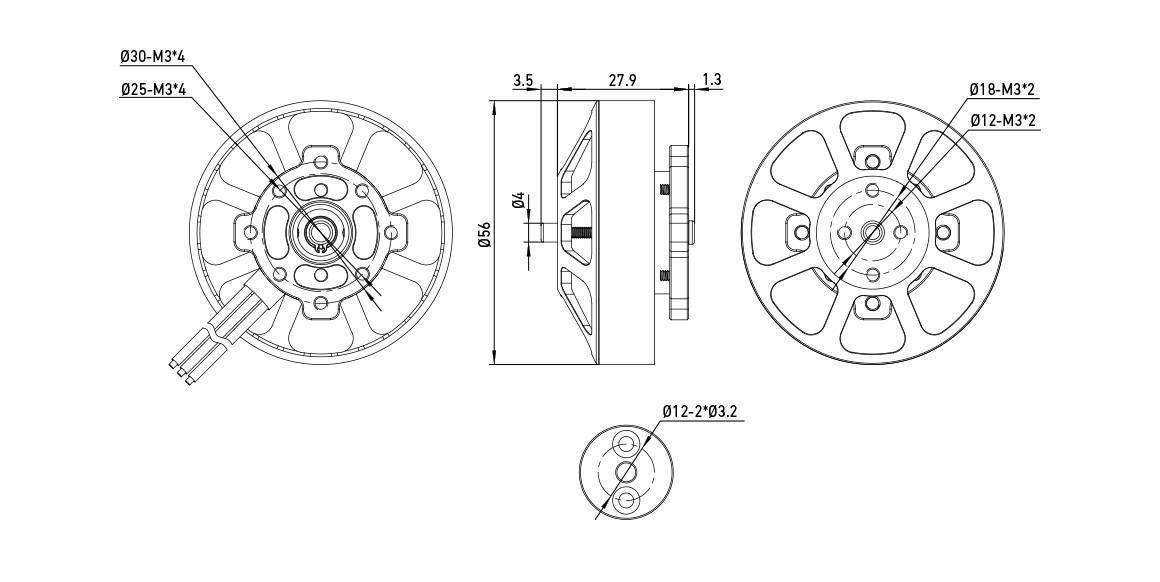

___________________________________________________________________________________________________________________________ Drawing and mount holes
