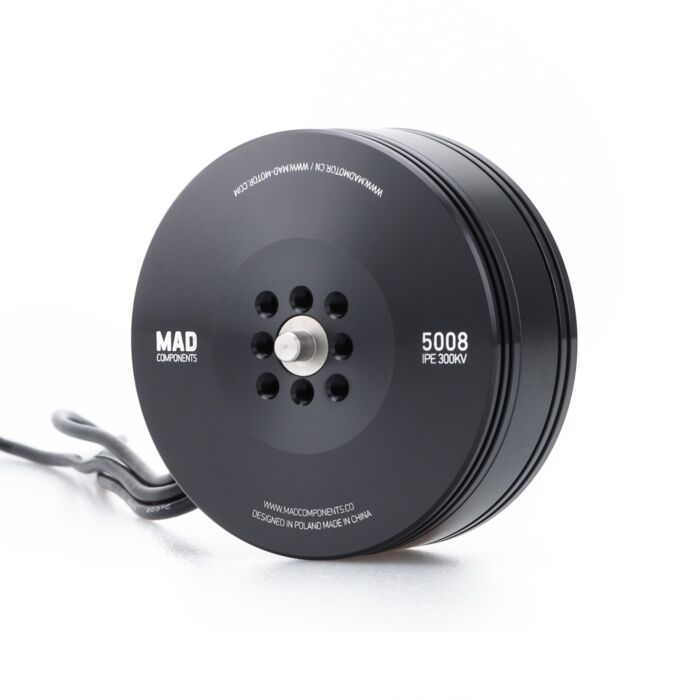

MAD 5008 IPE Industrial Drone Motor (170KV / 240KV / 300KV / 340KV / 400KV)
The MAD 5008 IPE V3 drone motor is an industrial multirotor propulsion motor designed for endurance-focused UAV platforms operating with 18–20 inch propellers. The 5008 stator provides strong torque for stable lift in multirotor systems producing approximately 1–2 kg of sustained thrust per rotor, with peak thrust up to 4.8 kg depending on configuration. The IPE series features enhanced environmental protection with an IP45 rating, reinforced shaft design, and efficient heat dissipation for demanding inspection, mapping, and industrial UAV operations using 6S–12S power systems.
About 5008 IPE
Summary of the 5008 Motor by MAD EU (2015):
Developer/Year: Designed and developed by MAD EU in 2015, this motor has proven reliable and effective, meeting the expectations of both designers and users.
Key Features:
- High Efficiency: Optimized for 18-20 inch propellers, making it one of the most efficient motors in its class.
- Thrust Capacity: Ideal for multirotors requiring 1-2 kg of thrust per rotor, balancing power and payload for applications like heavy-lift drones.
Applications: Widely adopted in professional drones, including:
- Long-range inspection drones.
- Mapping and surveying drones.
- Quadcopters, hexacopters, and other multirotor configurations.
Reputation:Recognized for its reliability and performance, it remains a popular choice in industrial and commercial drone sectors.
This motor is particularly suited for users prioritizing endurance, payload capacity, and precision in specialized operations.
| Specification |
|||||||||
| Motor Model |
MAD 5008 IPE V3.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 29.3 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4, D:15 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4 | ||||||
| Bearing | EZO 696ZZ*2 |
Disruptive test |
500 V |
||||||

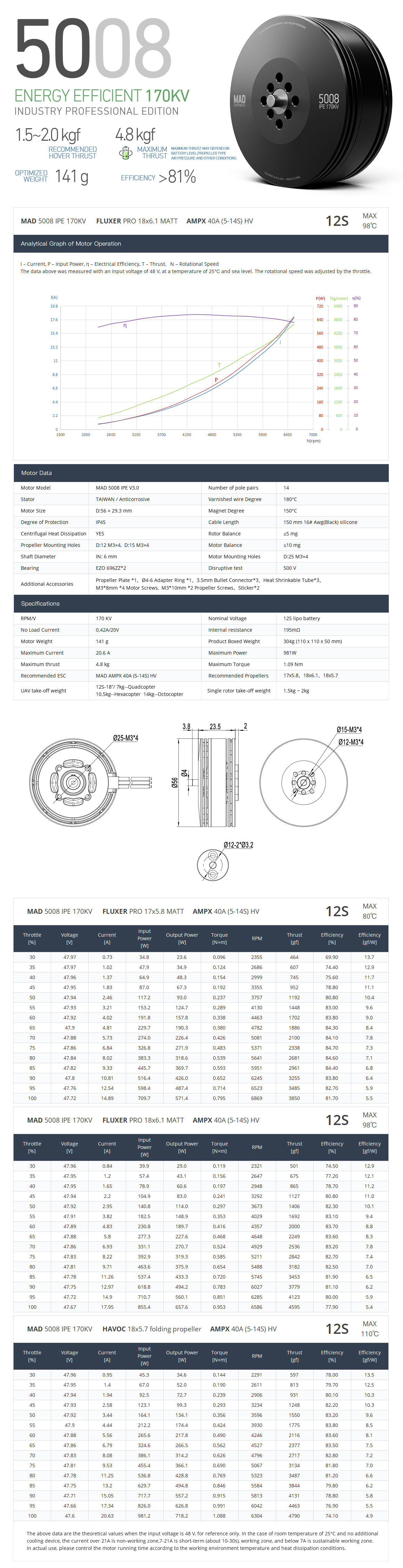

___________________________________________________________________________________________________________________________ Drawing and mount holes |
|||||||||

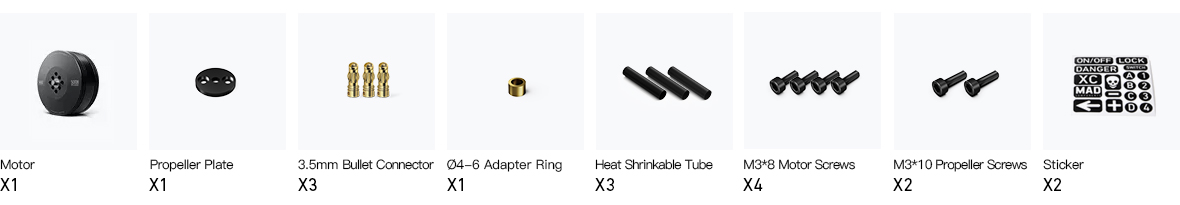

__________________________________________________________________________________________________________________________Accessories
More Information
| Series | IPE |
|---|---|
| Stator Size | 5008 |
| Application | Long Range, Arial Photography, Inspection / Mapping |
| Manufacturer | MAD |
