MAD 5008 EEE UAV Drone Motor (170KV / 240KV / 300KV / 340KV / 400KV)
The MAD 5008 EEE drone motor is a high-efficiency propulsion motor designed for professional multirotor UAV platforms requiring stable lift and long endurance. The 5008 stator configuration provides strong torque output for 18–20 inch propellers, supporting sustained thrust levels around 1–2 kg per rotor and peak thrust up to 4.8 kg depending on configuration. With support for 6S, 8S, and 12S power systems, the motor is well suited for inspection, mapping, and industrial UAV platforms where reliability, efficiency, and consistent lift are critical.
About 5008 EEE
Summary of the 5008 Motor by MAD EU (2015):Developer/Year: Designed and developed by MAD EU in 2015, this motor has proven reliable and effective, meeting the expectations of both designers and users.
Key Features:
- High Efficiency: Optimized for 18-20 inch propellers, making it one of the most efficient motors in its class.
- Thrust Capacity: Ideal for multirotors requiring 1-2 kg of thrust per rotor, balancing power and payload for applications like heavy-lift drones.
- Long-range inspection drones.
- Mapping and surveying drones.
- Quadcopters, hexacopters, and other multirotor configurations.
This motor is particularly suited for users prioritizing endurance, payload capacity, and precision in specialized operations.
| Specification |
|||||||||
| Motor Model |
MAD 5008 EEE V2.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 30.7 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×2, D:18 M3×2 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 5 mm |
Motor Mounting Holes |
D:25 M3×4, D:30 M3×4 | ||||||
| Bearing | EZO 685ZZ*1 / 695ZZ*1 |
Disruptive test |
500 V |
||||||

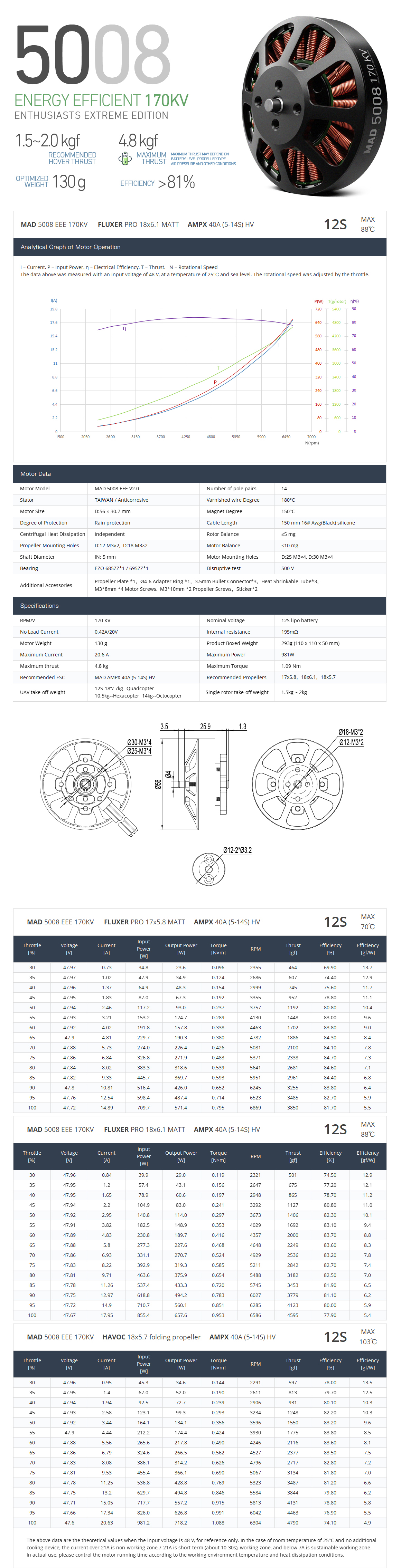

| _______________________________________________________________________________________________________________ Drawing and mount holes |
|||||||||
__________________________________________________________________________________________________________________________

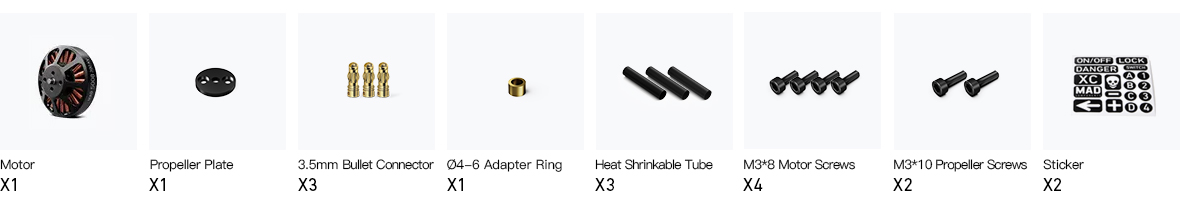

Accessories
More Information
| Series | EEE |
|---|---|
| Stator Size | 5008 |
| Application | Long Range, Arial Photography, Inspection / Mapping |
| Manufacturer | MAD |
