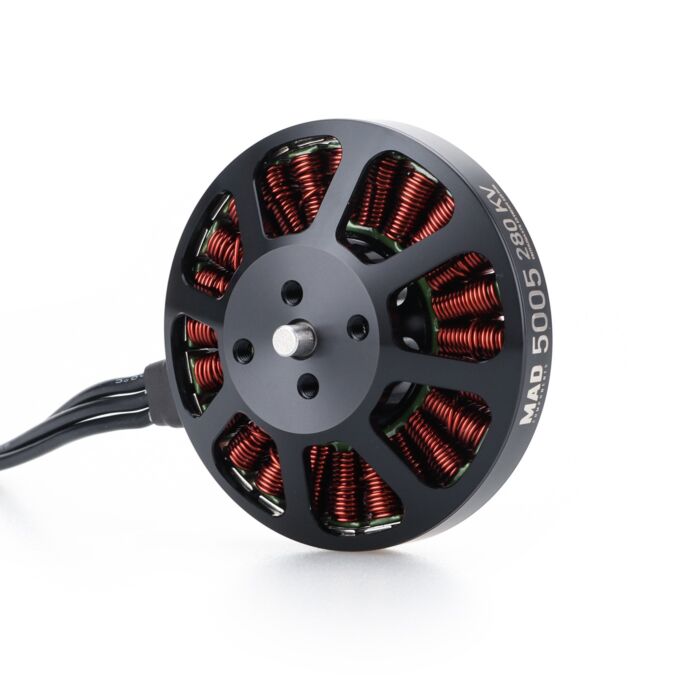

MAD 5005 EEE Drone Motor – 280KV / 350KV / 440KV

As low as: $68.00

only left for same day shipping. Order now!
Model: 5005 EEE
Selected SKU: Select options

Options

MAD 5005 EEE Drone Motor – 280KV / 350KV / 440KV
The MAD 5005 EEE drone motor is designed for efficient multirotor UAV platforms requiring stable thrust and long flight endurance. Supporting 14–18 inch propellers and producing up to 3 kg of maximum thrust per motor, it is optimized for payloads between 0.5 kg and 1.5 kg depending on configuration. The EEE series emphasizes efficiency through lightweight construction, precision rotor balancing, and high-temperature windings for sustained flight performance. U.S. fulfillment available on most products. Call to confirm current warehouse stock.

MAD 5005 EEE UAV Drone Motor (280KV / 350KV / 440KV)

Key Specifications & Advantages

⚡ Thrust-Optimized Performance

  • Continuous Thrust: 500–1500g per motor (Ideal for stable, efficient operation)

  • Peak Burst Thrust: 92g per rotor (For critical maneuvers or emergency recovery)

  • Propeller Range: 14–18" carbon fiber or polymer

    • 18" Props: Max efficiency for heavy lifting

    • 14" Props: Agile response for high-speed applications

 Built for Industrial Durability

  • Ultralight Design: Just 92g/motor (Reduces dead weight without sacrificing power)

  • Aerospace-Grade Materials: Precision bearings, reinforced alloy housing

  • Thermal Resilience: Optimized for sustained high-load operation

    Why Professionals Trust the MAD5005 EEE

    ✔ Predictable Power Delivery – Stable thrust curves for precise flight control
    ✔ Mission-Adaptive – Reconfigure propeller sizing for efficiency vs. speed priorities
    ✔ Overbuilt for Reliability – Withstands vibration, dust, and moisture in harsh environments

    Ideal Applications:

    • Heavy-payload cinematography drones

    • Industrial inspection UAVs

    • Agricultural spray systems

    • Search-and-rescue operations

    Engineered to Lift More Than Weight – It Lifts Expectations.

Specification
Motor Model
 MAD 5005 EEE V2.0
 Number of pole pairs
 14
Stator
 Anticorrosive
 Varnished wire Degree
 180°C
Motor Size
 D:56 × 27.7 mm
 Magnet Degree
 150°C
Degree of Protection
 Rain protection Cable Length
 150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation
 Independent Rotor Balance
 ≤5 mg
Propeller Mounting Holes
 D:12 M3×2,  D:18 M3×2
 Motor Balance
 ≤10 mg
Shaft Diameter
 IN: 5 mm
 Motor Mounting Holes
 D:25 M3×4, D:30 M3×4
Bearing EZO 685ZZ*1 / EZO 695ZZ*1
 Disruptive test
 500 V
___________________________________________________________________________________________________________________________

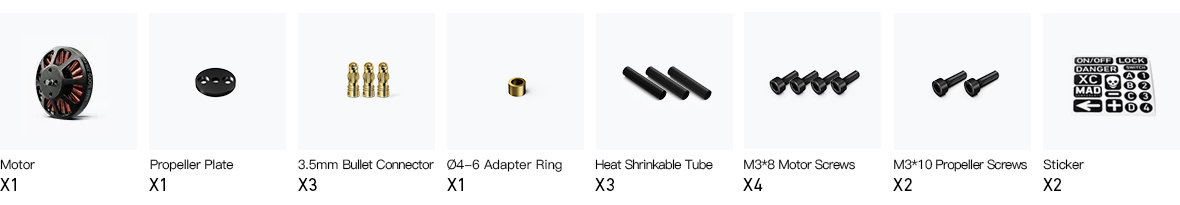

Accessories

More Information

Series EEE
Stator Size 5005
Application Long Range, Arial Photography, Inspection / Mapping
Manufacturer MAD
