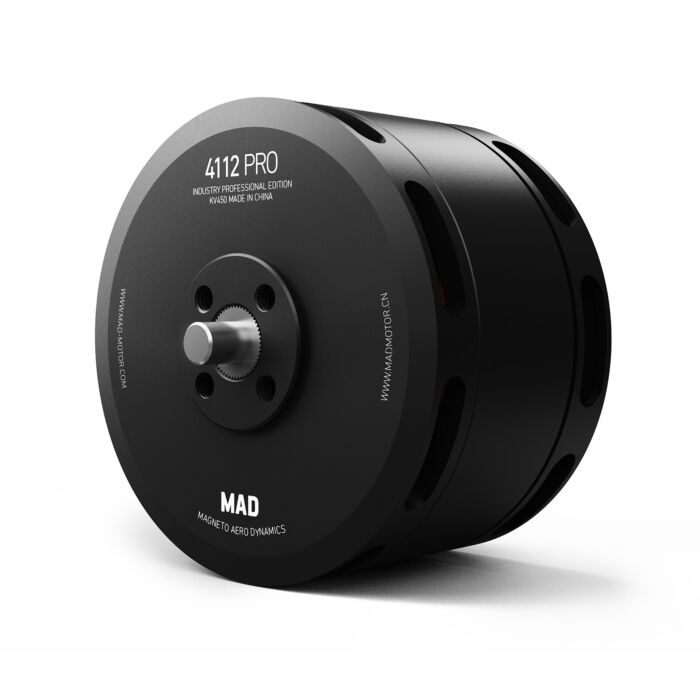

4112 PRO IPE Drone Motor
As low as:
$89.00
As low as:
only left for same day shipping. Order now!
4112 PRO IPE Drone Motor
4012 EEE
About this product
About 40112 Pro IPE
Core Specifications
-
Payload Range: 1400-1900g/rotor
-
Propeller Match: 15-16" ultra-stiff carbon fiber
-
Max Thrust: 3788g (3.79kg) per motor
-
Weight: 146g
For eVTOL Feathering
-
Function: Automatically reduces drag after engine failure
-
Performance: Increases glide ratio by 40%
-
Motor Data |
|||
| Motor Model | MAD 4112 PRO IPE V1.0 | Number of pole pairs | 12 |
| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:46.6 × 34.7 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | 685ZZ*1 / 695ZZ*1 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

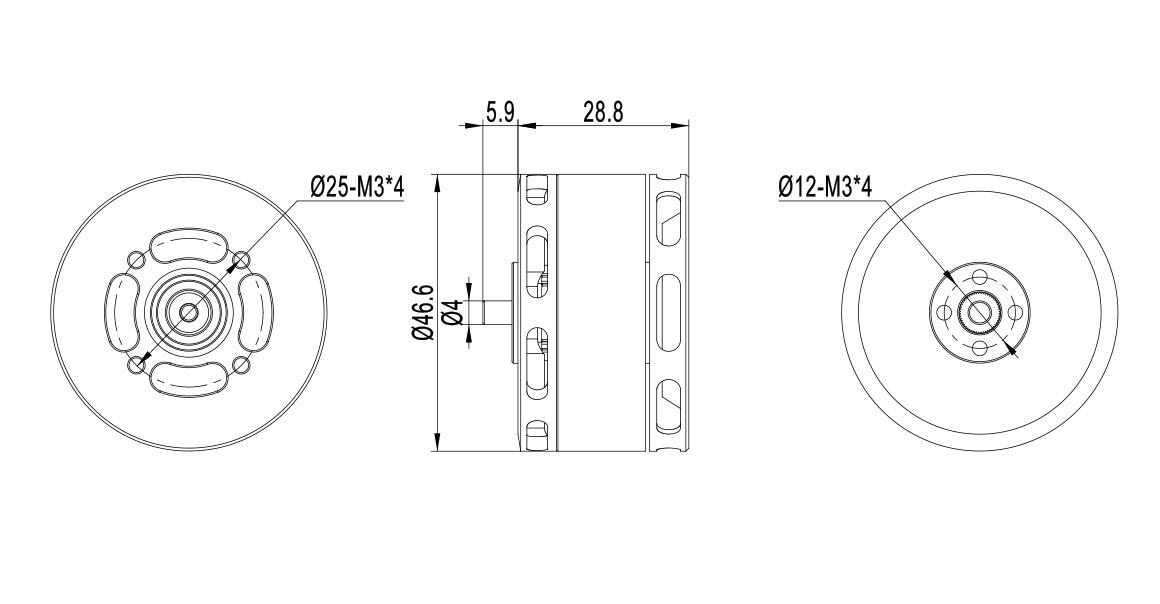

Drawing and mount holes
90℃ feathering propeller，180℃ feathering propeller
More Information
| Manufacturer | MAD |
|---|
