4014 IPE Drone Motor
4014 IPE
Share

About this product

About 4014 IPE

Core Performance

▸ Payload Capacity: 950-1600g/rotor
▸ Propeller Optimization: 15-17" high-performance carbon fiber
▸ Max Thrust: 3400g (3.4kg) per rotor
▸ Weight: 168g

Professional Applications

1. Heavy-Lift Cinematography

  • Safely carries Sony Venice 2 + DJI Ronin 4D (3.2kg payload)

  • Ultra-smooth operation for 8K video stabilization

2. Industrial Logistics

  • 8km delivery range with 2kg cargo (VTOL compatible)

  • Shock-resistant design for urban environments

3. Defense & Surveillance

  • Radar-absorbent coating option available
    Need a customized solution? Contact us for KV options and bulk order discounts!

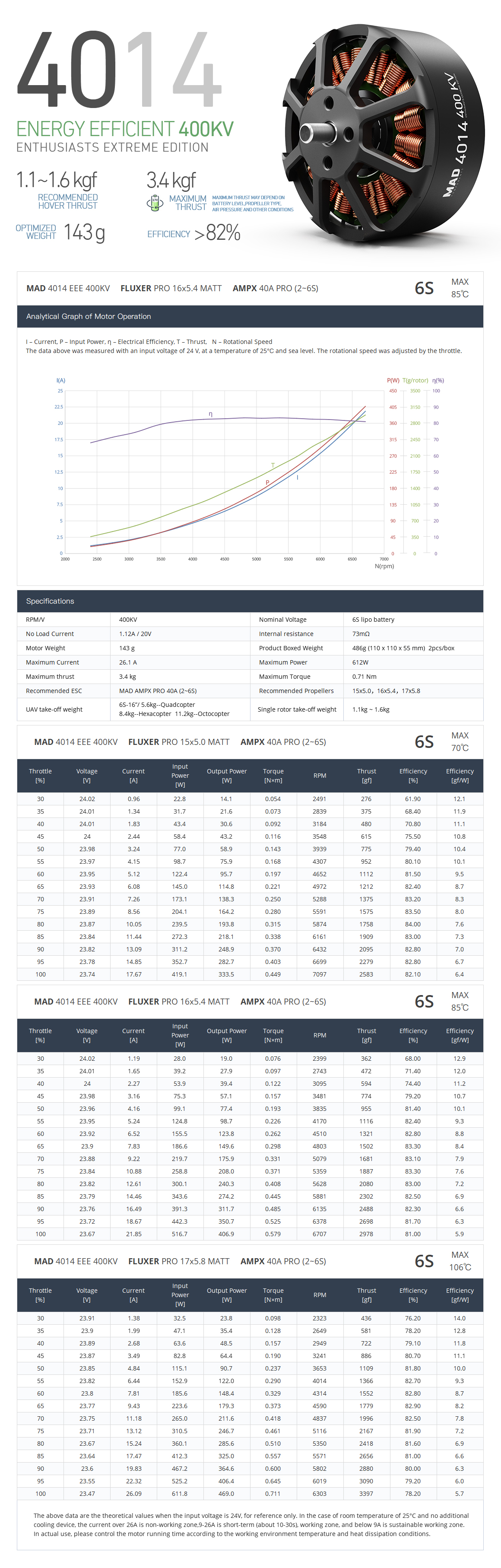

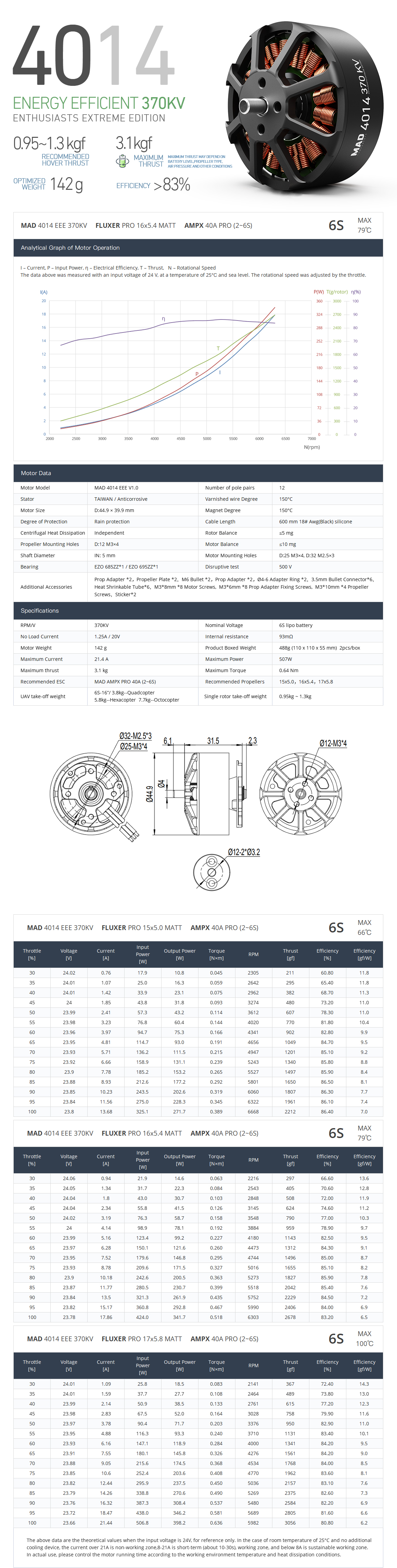

Motor Data
Motor Model MAD 4014 IPE V1.0 Number of pole pairs 12
Stator Anticorrosive Varnished wire Degree 150°C
Motor Size D:44.9 × 39.9 mm Magnet Degree 150°C
Degree of Protection IP35 Cable Length 600 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 4 mm Motor Mounting Holes D:25 M3×4
Bearing 685ZZ*1 / 695ZZ*1 Disruptive test 500 V

___________________________________________________________________________________________________________________________

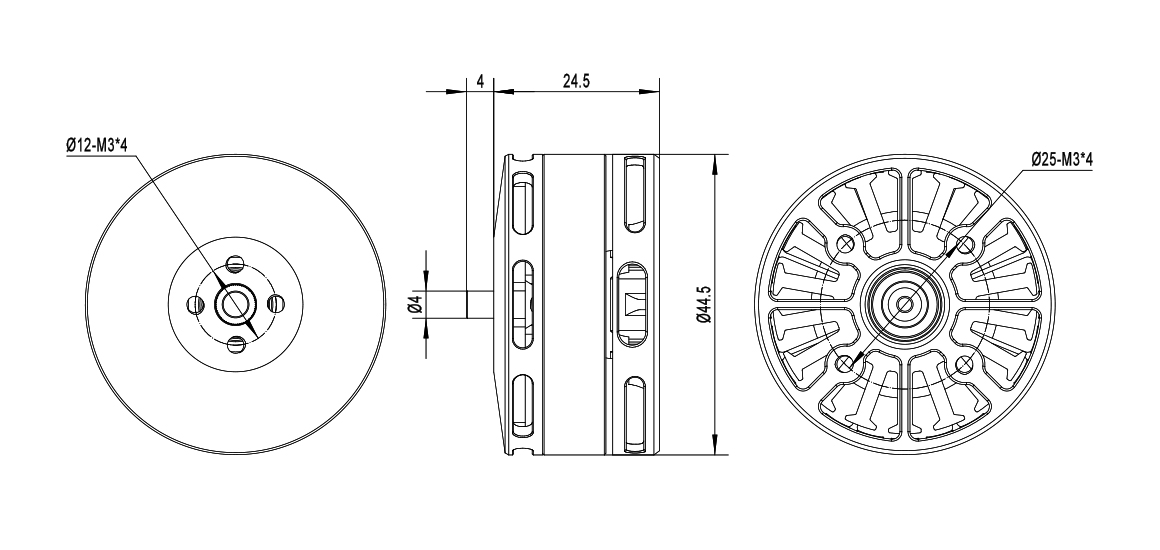

Drawing and mount holes

___________________________________________________________________________________________________________________________

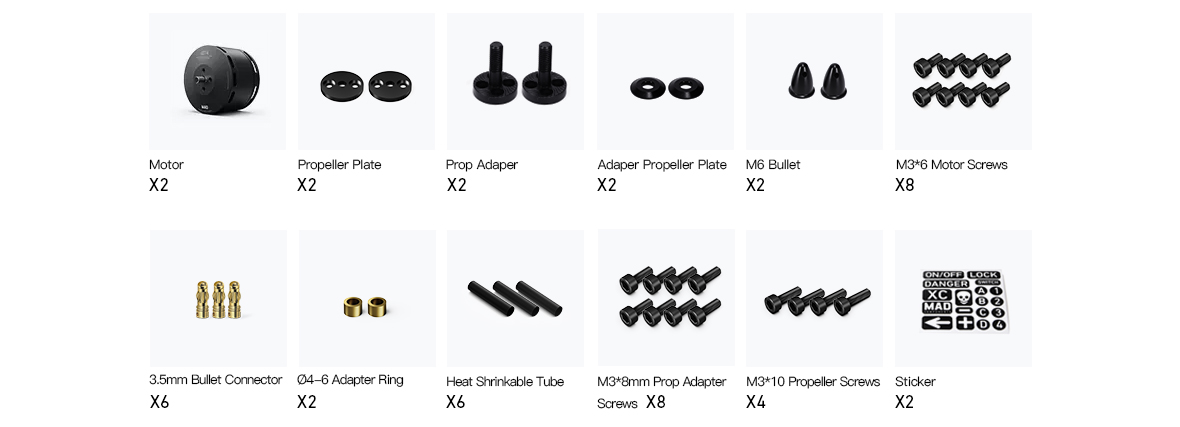

Accessories
