4014 EEE Drone Motor
As low as:
$89.00
As low as:
only left for same day shipping. Order now!
4014 EEE Drone Motor
4014 EEE
About this product
About 4014 EEE
Core Performance
▸ Payload Capacity: 950-1600g/rotor
▸ Propeller Optimization: 15-17" high-performance carbon fiber
▸ Max Thrust: 3400g (3.4kg) per rotor
▸ Weight: 143g
Professional Applications
1. Heavy-Lift Cinematography
-
Safely carries Sony Venice 2 + DJI Ronin 4D (3.2kg payload)
-
Ultra-smooth operation for 8K video stabilization
2. Industrial Logistics
-
8km delivery range with 2kg cargo (VTOL compatible)
-
Shock-resistant design for urban environments
3. Defense & Surveillance
-
Radar-absorbent coating option available
Need a customized solution? Contact us for KV options and bulk order discounts!
| Specification |
|||||||||
| Motor Model |
MAD 4014 EEE V1.0 |
Number of pole pairs |
12 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
150°C | ||||||
| Motor Size |
D:44.9 × 39.9 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
600 mm 18# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 5 mm |
Motor Mounting Holes |
D:25 M3×4, D:32 M2.5×3 | ||||||
| Bearing | EZO 685ZZ*1 / EZO 695ZZ*1 |
Disruptive test |
500 V |
||||||

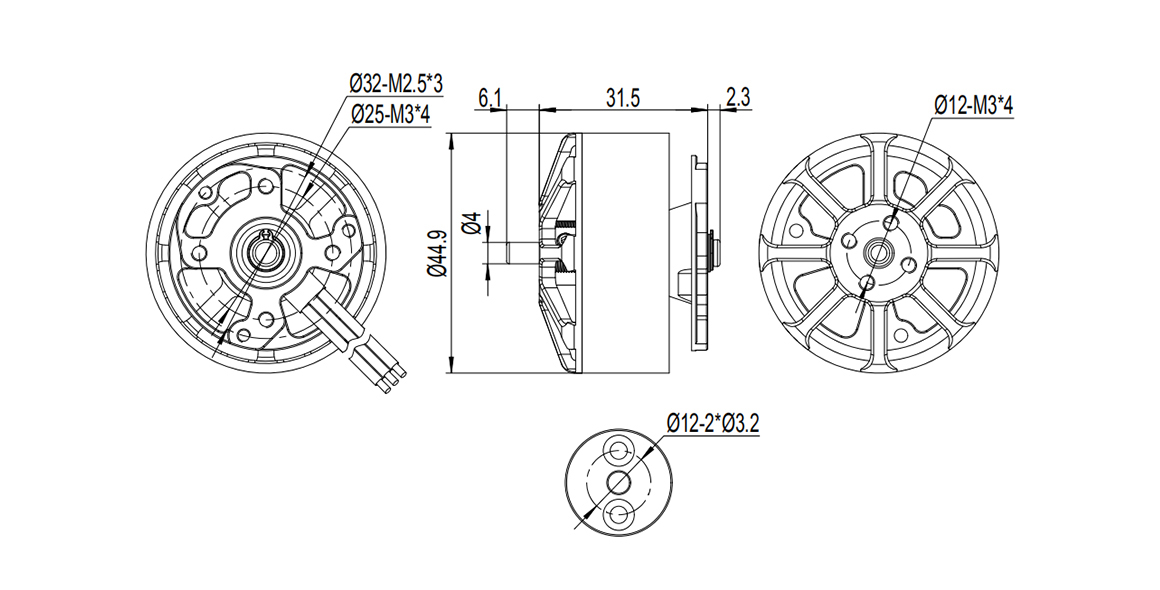

___________________________________________________________________________________________________________________________ Drawing and mount holes |
|||||||||
___________________________________________________________________________________________________________________________

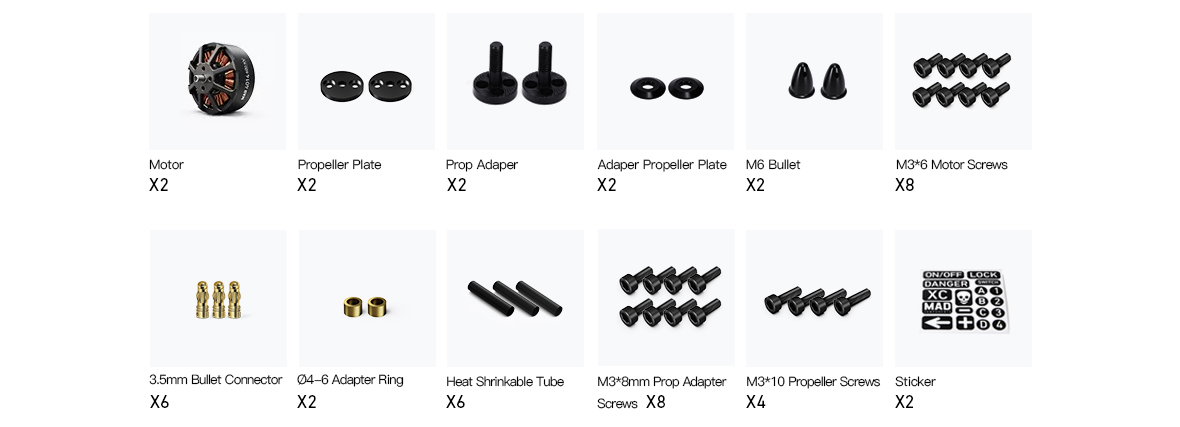

Accessories
