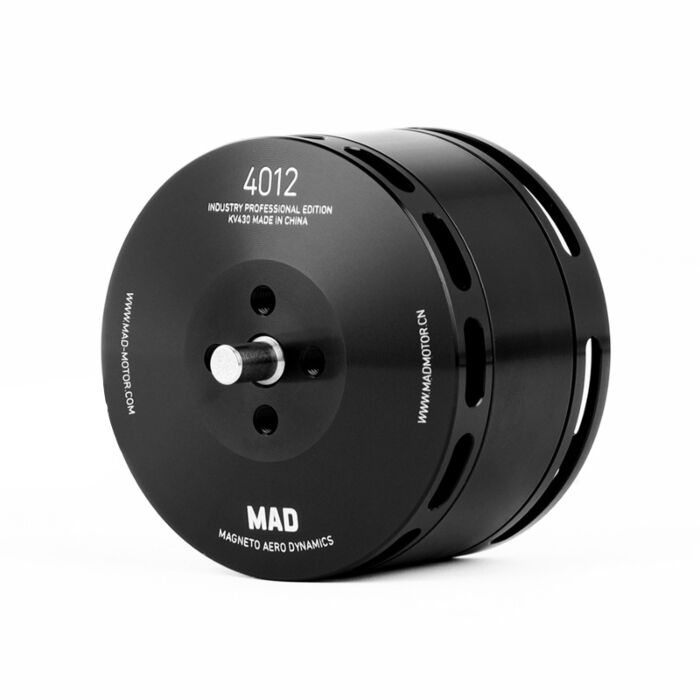

4012 IPE Drone Motor
As low as:
$79.00
As low as:
only left for same day shipping. Order now!
4012 IPE Drone Motor
4012 IPE
About this product
About 4012 IPE
-
Payload Capacity: 1000-1500g/rotor
-
Propeller Compatibility: 13-15" high-efficiency carbon fiber
-
Max Thrust: 2938g (2.94kg) per motor
-
Weight: 153g
Professional Applications
Recommended for:
-
Cinematic drones – Smooth footage with heavy camera setups
-
Industrial UAVs – Long-endurance missions with payloads
-
Agricultural drones – Efficient spraying and crop monitoring
Need a customized solution? Contact us for KV options and bulk order discounts!
-

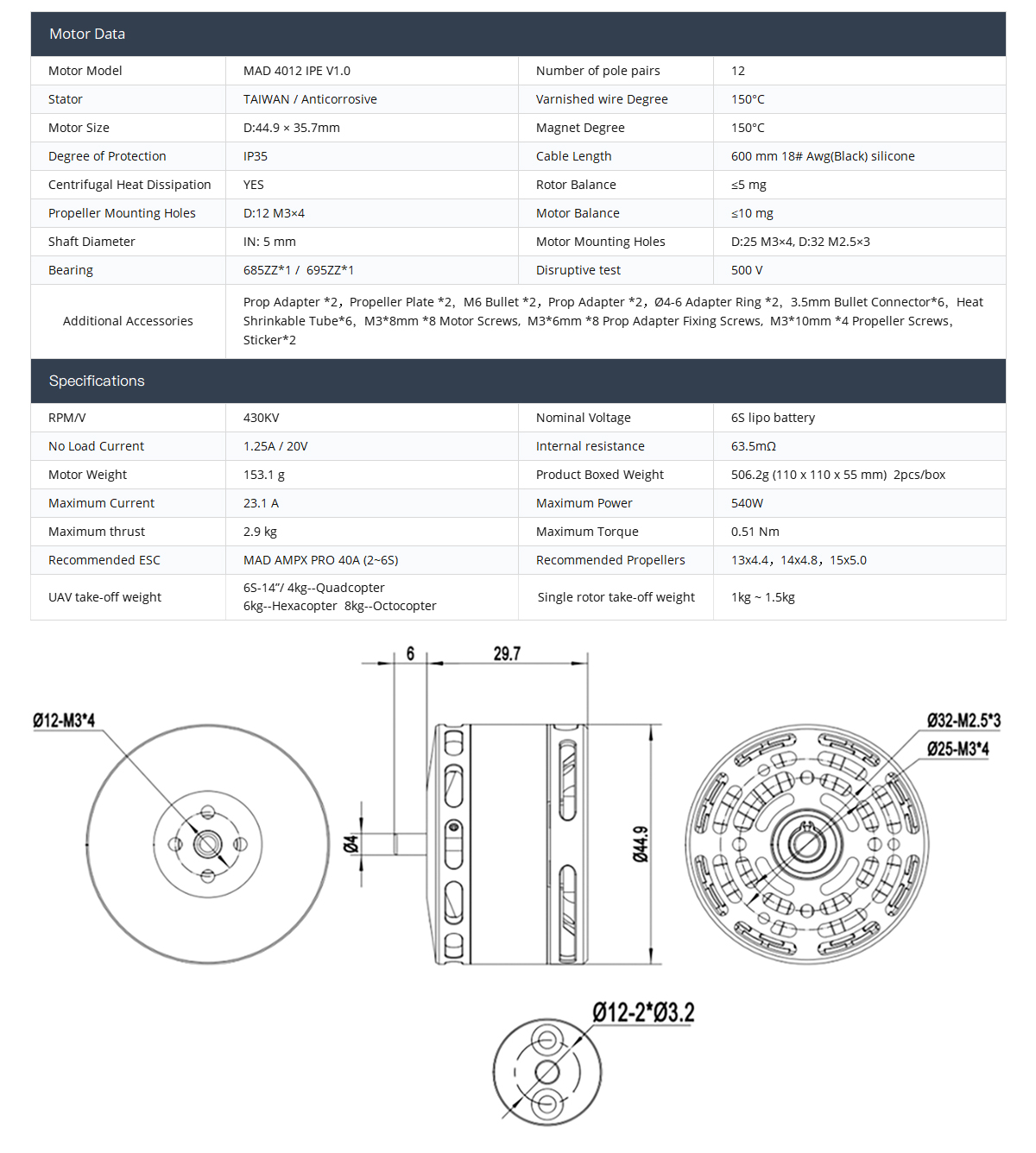

Motor Data |
|||
| Motor Model | MAD 4012 IPE V1.0 | Number of pole pairs | 12 |
| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:44.9 × 35.7mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 600 mm 18# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:25 M3×4, D:32 M2.5×3 |
| Bearing | 685ZZ*1 / 695ZZ*1 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

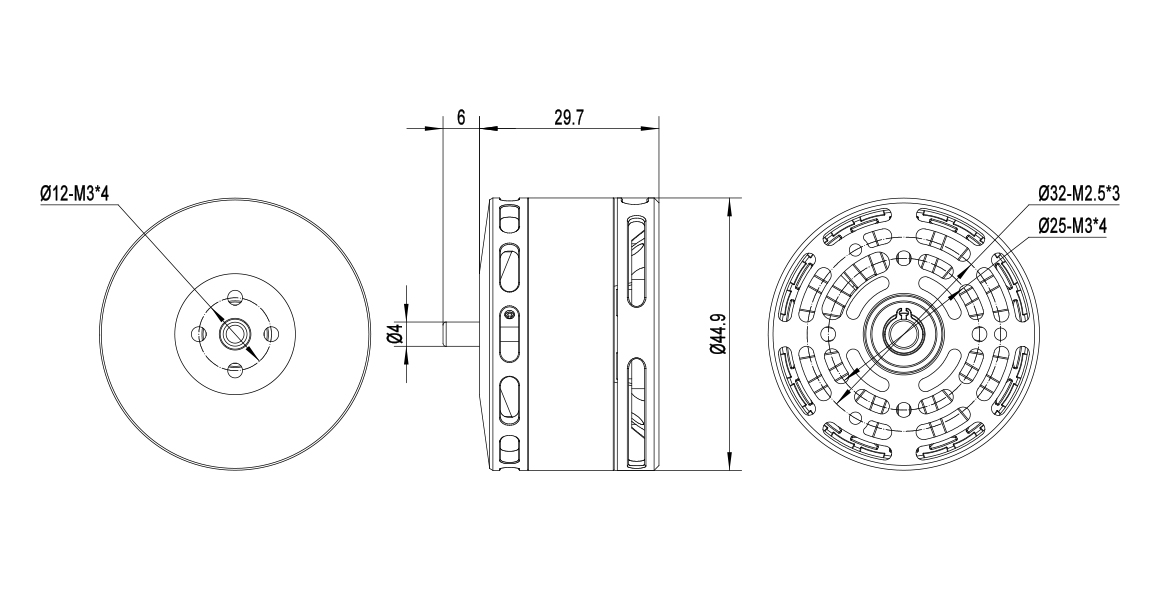

Drawing and mount holes
___________________________________________________________________________________________________________________________
Accessories
More Information
| Manufacturer | MAD |
|---|
