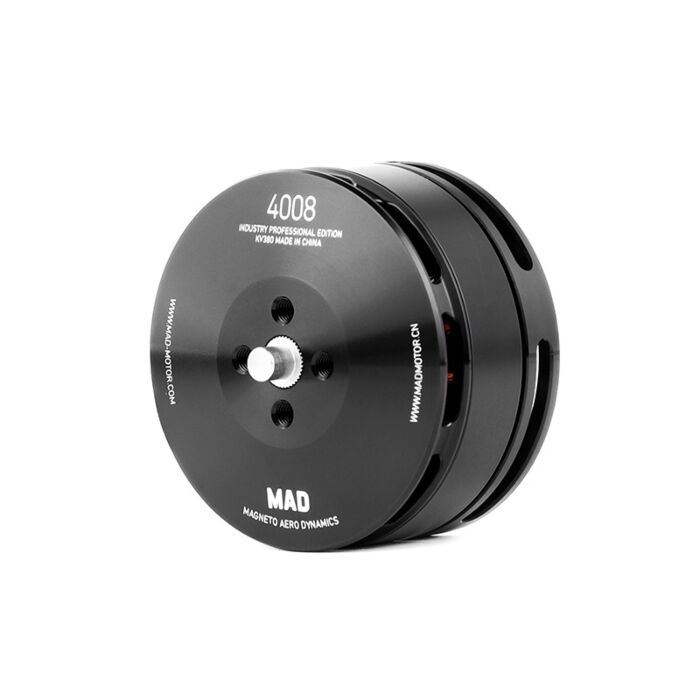

4008 IPE Drone Motor

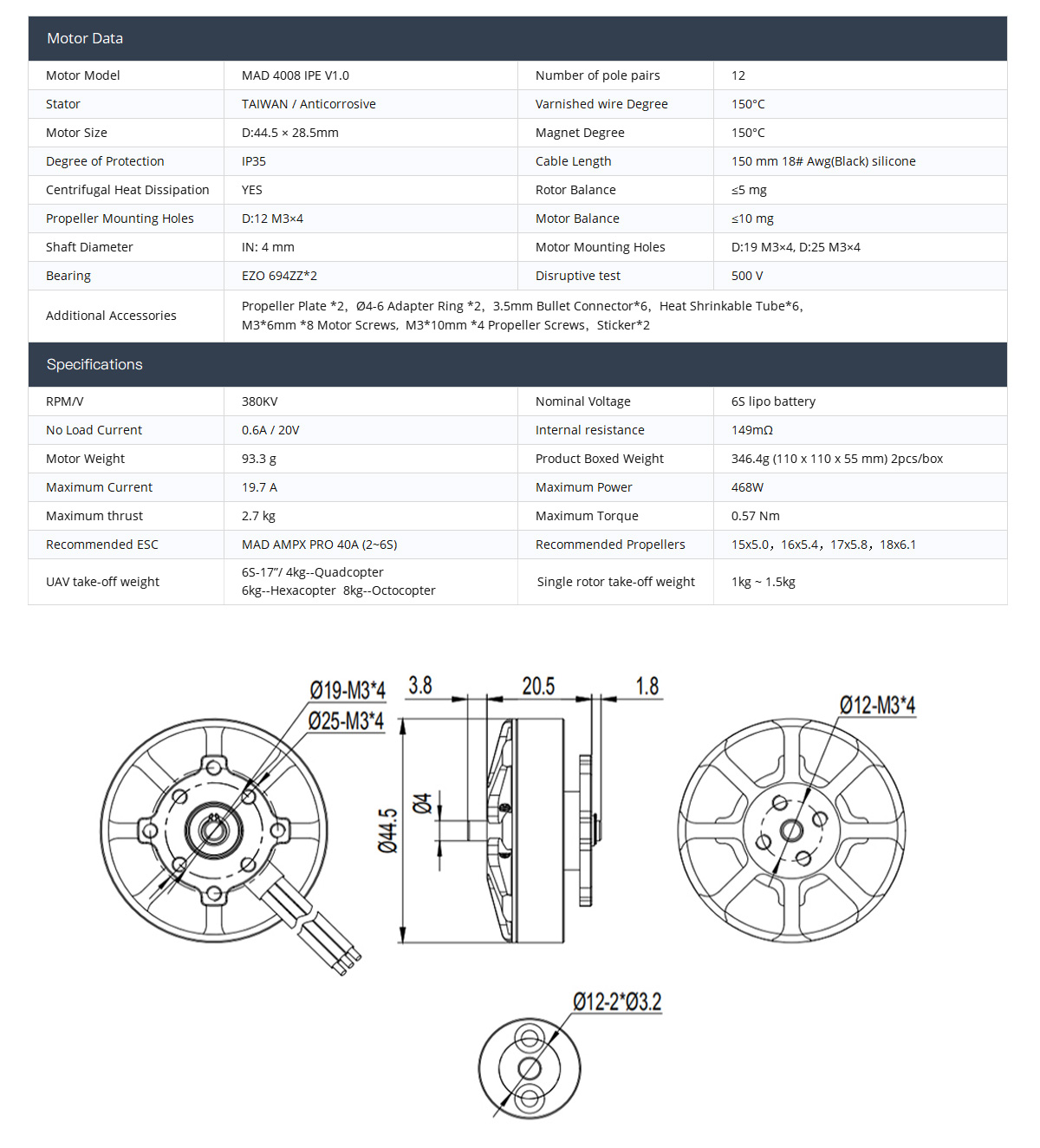

About 4008 IPE Core Performance ▸ Payload Capacity: 700-1300g/rotor ▸ Propeller Optimization: 14-18" high-load carbon fiber ▸ Max Thrust: 2700g (2.7kg) per rotor ▸ Weight: 93.3g (with integrated heat dissipation) Professional Applications 1. Heavy-Lift Cinematography Safely carries RED V-RAPTOR + 360° gimbal (2.1kg payload) Silent operation for film-set environments. 2. Industrial Logistics 5km+ delivery range with 1.5kg cargo. Vibration-free for medical transport. 3. Defense & Surveillance Stealth operation (IR signature reduced by 40%) EMP-hardened version available. Motor Data Motor Model MAD 4008 IPE V1.0 Number of pole pairs 12 Stator Anticorrosive Varnished wire Degree 150°C Motor Size D:44.5 × 28.5mm Motor Balance 150°C Degree of Protection IP35 Cable Length 150 mm 18# Awg(Black) silicone Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg Propeller Mounting Holes D:12 M3×4 Motor Balance ≤10 mg Shaft Diameter IN: 4 mm Motor Mounting Holes D:25 M3×4 Bearing EZO 694ZZ*2 Disruptive test 500 V ___________________________________________________________________________________________________________________________ Drawing and mount holes___________________________________________________________________________________________________________________________ Accessories
