4008 EEE Drone Motor
As low as:
$68.00
As low as:
only left for same day shipping. Order now!

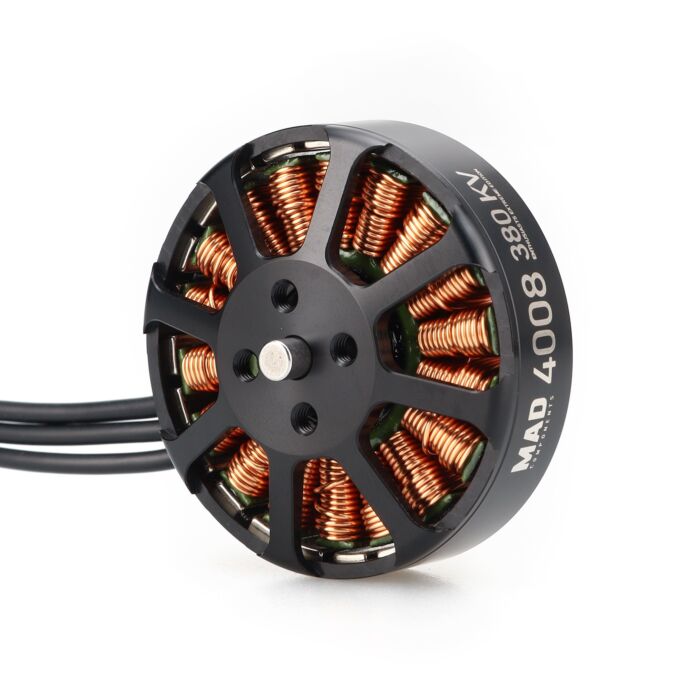

4008 EEE Drone Motor
4008 EEE
About this product
About 4008 EEE
▸ Payload Capacity: 700-1300g/axis
▸ Propeller Optimization: 14-18" high-load carbon fiber
▸ Max Thrust: 2700g (2.7kg) per axis
▸ Weight: 88g (with integrated heat dissipation)
Professional Applications
1. Heavy-Lift Cinematography
-
Safely carries RED V-RAPTOR + 360° gimbal (2.1kg payload)
-
Silent operation for film-set environments
2. Industrial Logistics
-
5km+ delivery range with 1.5kg cargo
-
Vibration-free for medical transport
3. Defense & Surveillance
-
Stealth operation (IR signature reduced by 40%)
-
EMP-hardened version available
Specification |
|||||||||
| Motor Model |
MAD 4008 EEE V1.0 |
Number of pole pairs |
12 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
150°C | ||||||
| Motor Size |
D:44.5 × 26.1 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
150 mm 18# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 4 mm |
Motor Mounting Holes |
D:19 M3×4, D:25 M3×4 | ||||||
| Bearing | EZO 694ZZ*2 |
Disruptive test |
500 V |
||||||

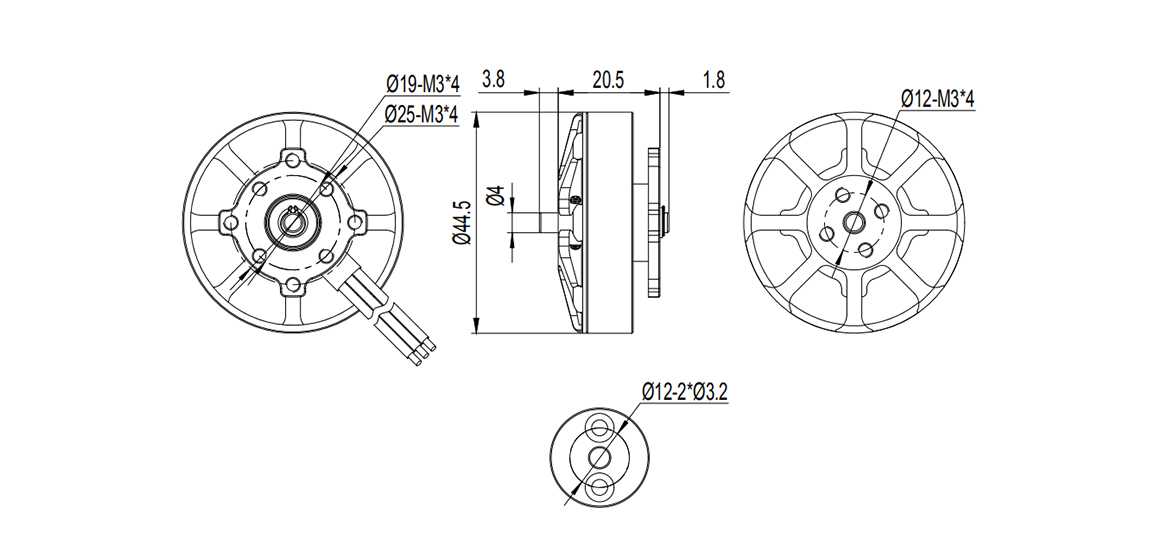

________________________________________________________________________________________________Drawing and mount holes |
|||||||||
___________________________________________________________________________________________________________________________

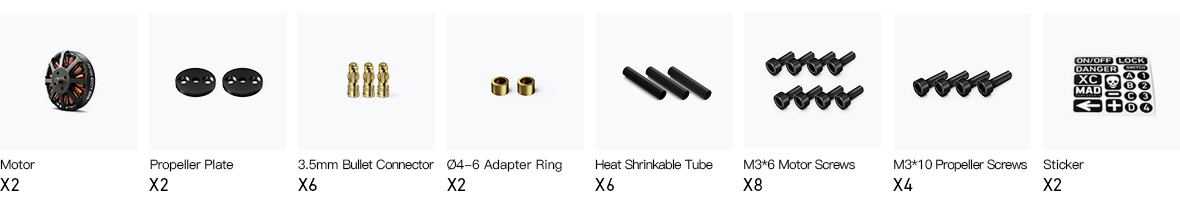

Accessories
