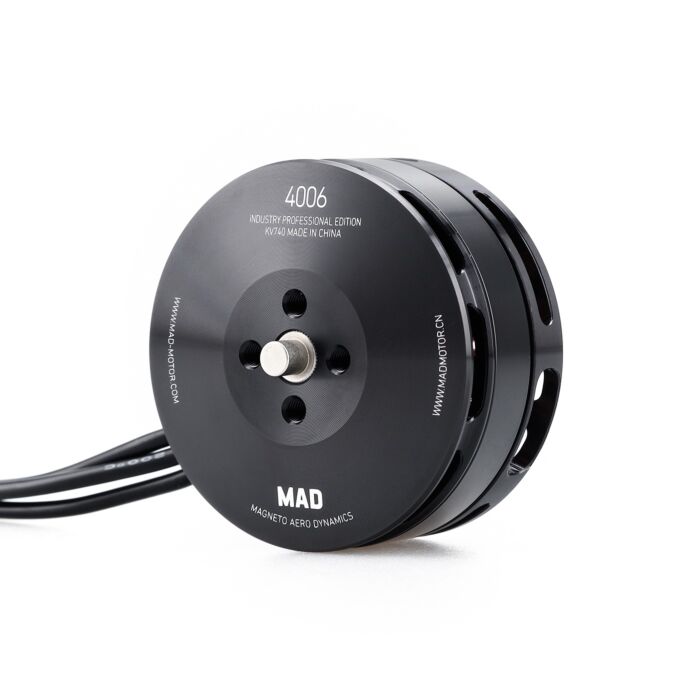

4006 IPE Drone Motor

As low as: $68.00

only left for same day shipping. Order now!

4006 IPE

About this product

About 4006 IPE

Payload Range: 550–1100g/rotor
Propeller Match: 13–16" high-performance carbon fiber
Max Thrust: 2200g (2.2kg) per motor
Weight: 79g

Recommended Applications
- Cinematic Heavy Lifters
  ▶ Supports ARRI Mini LF + O3 Air Unit (total 1.8kg)
  ▶ Ultra-low vibration (0.005mm RMS)
- Industrial Mission Platforms
  ▶ 200h maintenance-free operation
  ▶ Compatible with 4S-6S power systems
- Defense & Security
  ▶ EMI-shielded version available

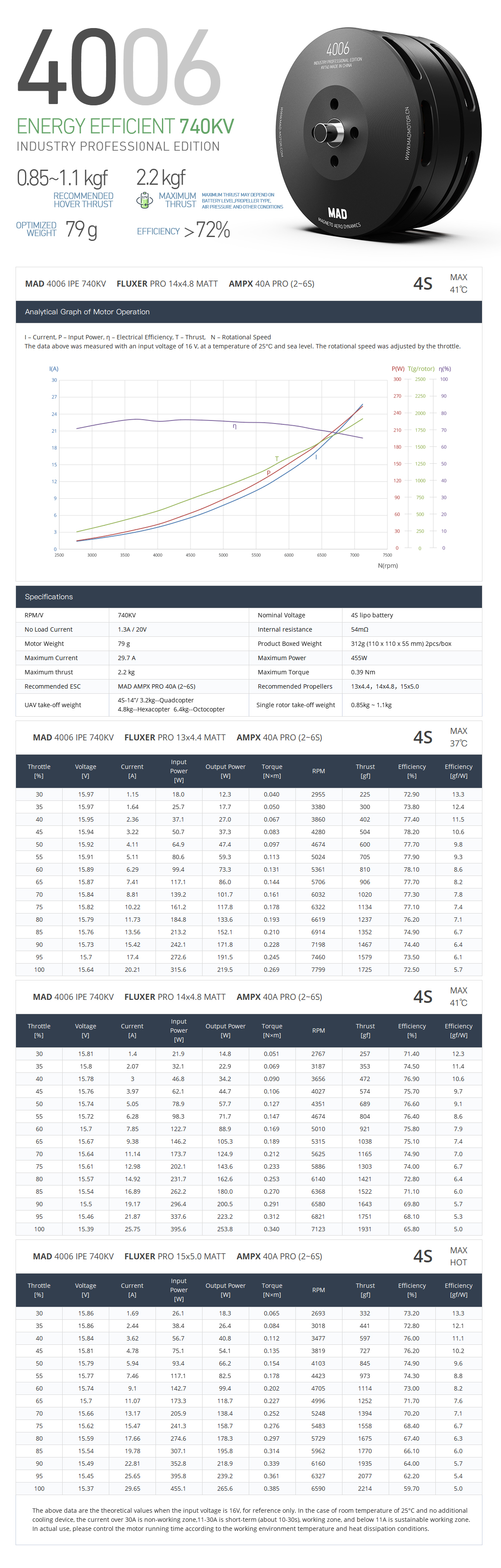

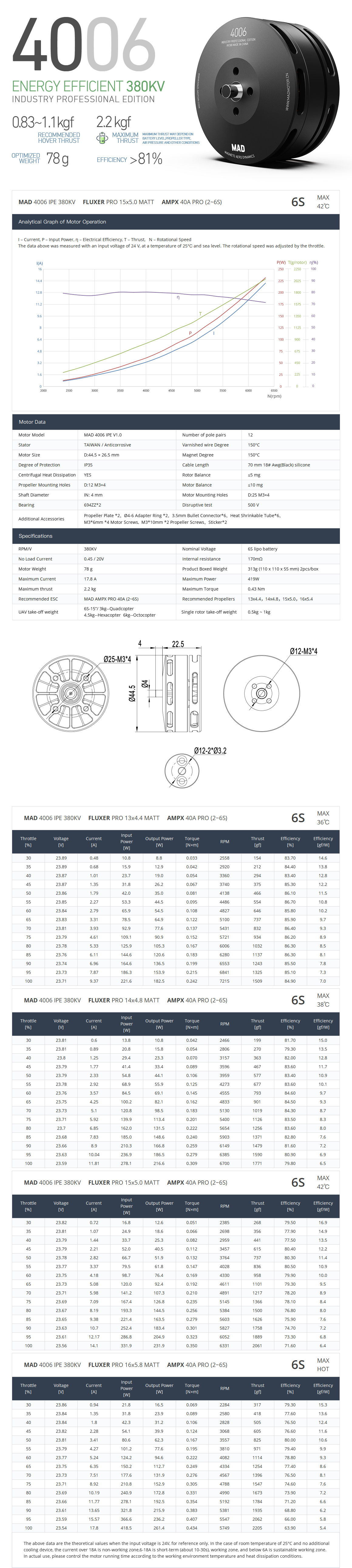

Motor Data
Motor Model	MAD 4006 IPE V1.0	Number of pole pairs	12
Stator	Anticorrosive	Varnished wire Degree	150°C

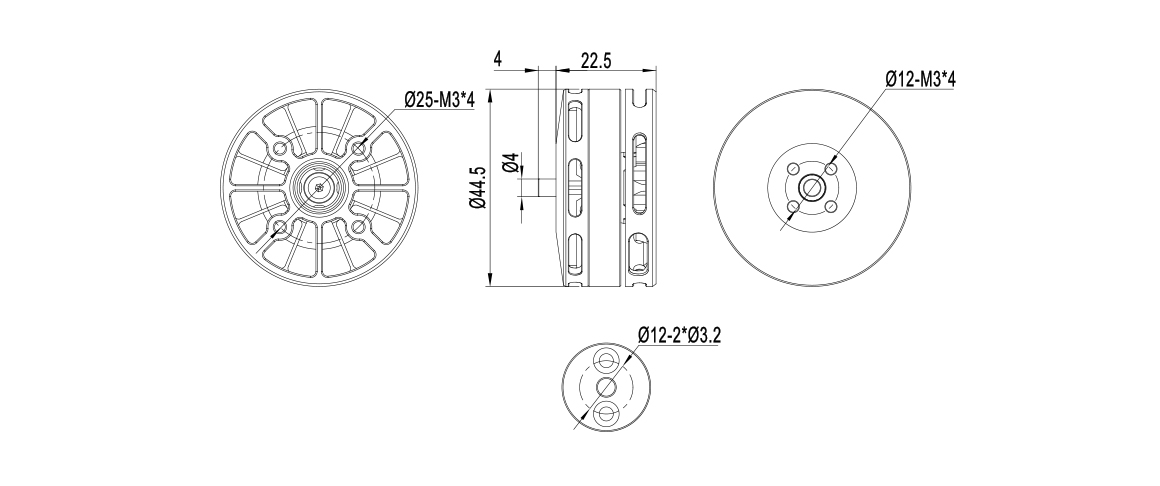

Motor Size	D:44.5 × 24.5mm	Magnet Degree	150°C
Degree of Protection	IP35	Cable Length	150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 4 mm	Motor Mounting Holes	D:25 M3×4
Bearing	694ZZ*2	Disruptive test	500 V
