4006 EEE Drone Motor
As low as:
$64.00
As low as:
only left for same day shipping. Order now!

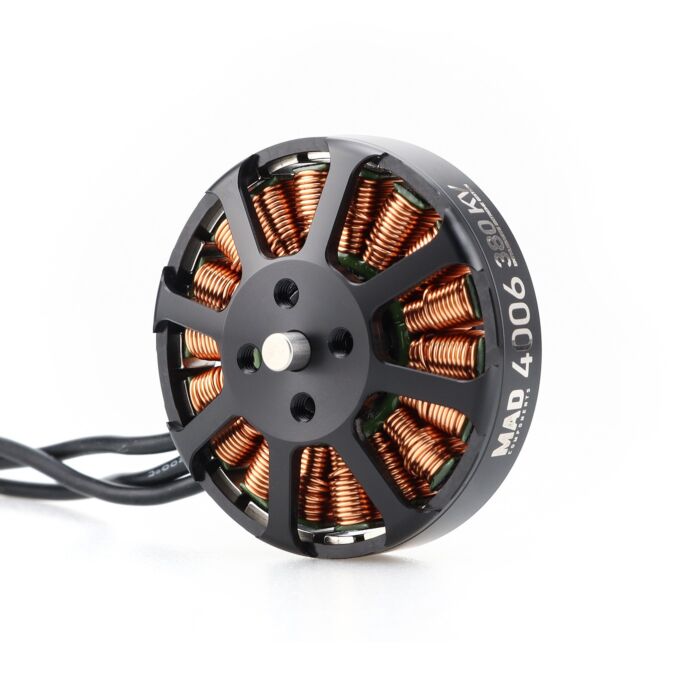

4006 EEE Drone Motor
4006 EEE
About this product
About 4006 EEE
-
Payload Capacity: 550–1100g per rotor
-
Propeller Compatibility: 13–16" carbon fiber props
-
Max Thrust: 2200g (2.2kg) per motor
-
Ultralight Design: Only 72g per unit
Key Features
✔ Industry-leading thrust-to-weight ratio (30.5:1)
✔ Optimized for 6S-8S LiPo systems
✔ Low-RPM high-torque design for extended flight times
✔ Precision-balanced rotor reduces vibration to <5mg
Ideal Applications
-
Professional cinematography drones (Red Komodo, Sony FX3 payloads)
-
Industrial inspection platforms (LiDAR/thermal imaging systems)
-
Advanced FPV racing (hybrid cinewhoop builds)
-
Agricultural monitoring (multispectral sensor arrays)
(Need custom KV options or bulk pricing? Contact us!)

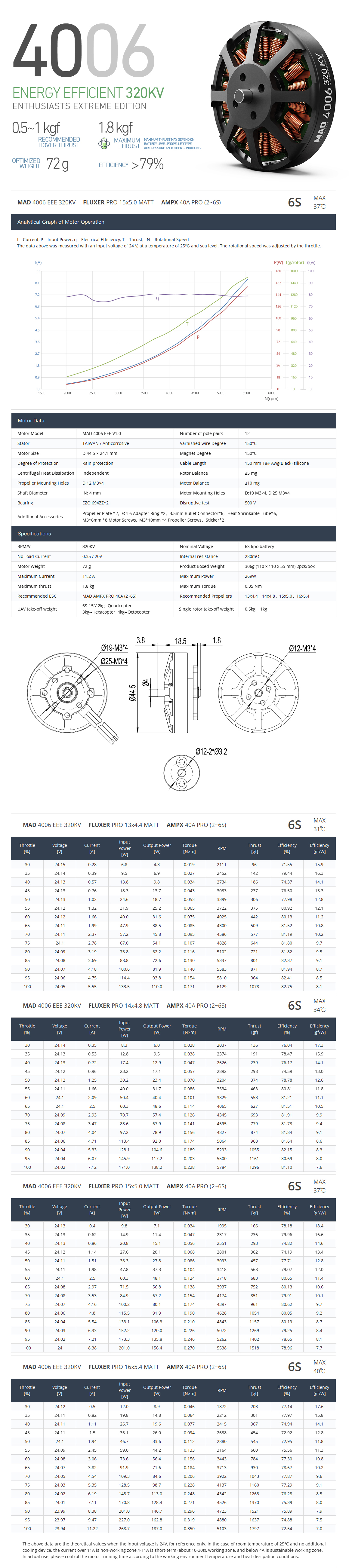

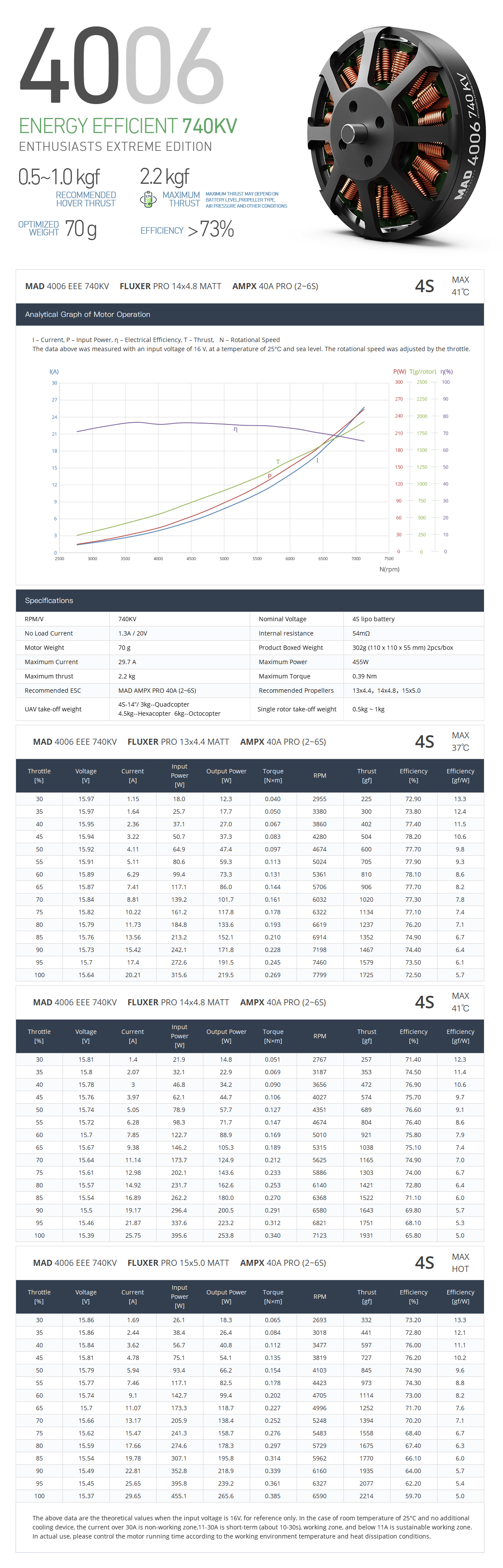

Motor Data |
|||
| Motor Model | MAD 4006 EEE V1.0 | Number of pole pairs | 12 |
| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:44.5 × 24.1 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 18# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 4 mm | Motor Mounting Holes | D:19 M3×4 D:25 M3×4 |
| Bearing | 694ZZ*2 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

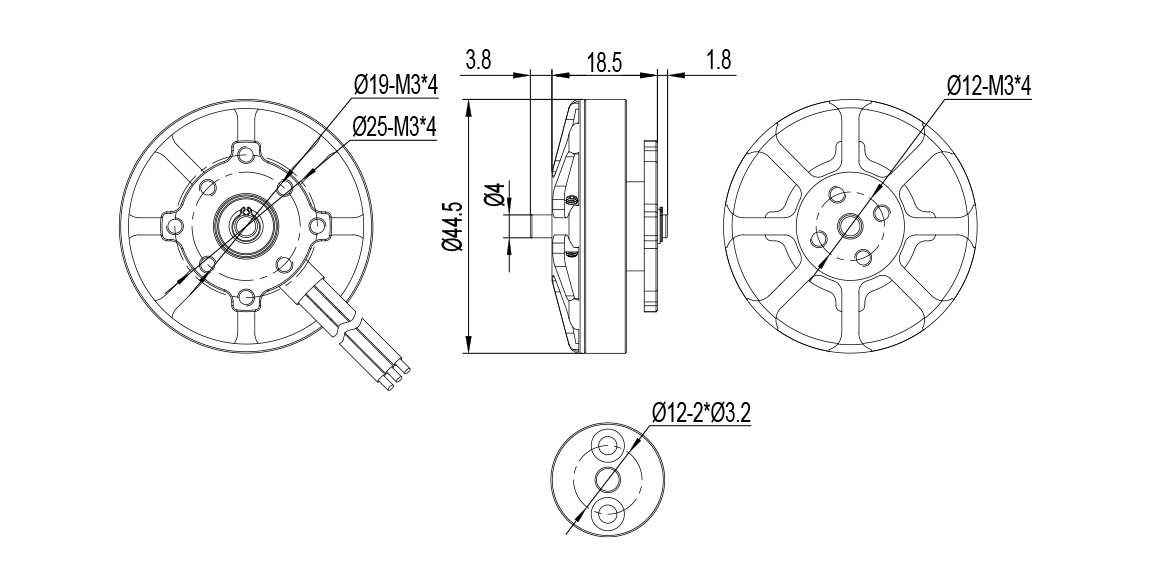

Drawing and mount holes
___________________________________________________________________________________________________________________________

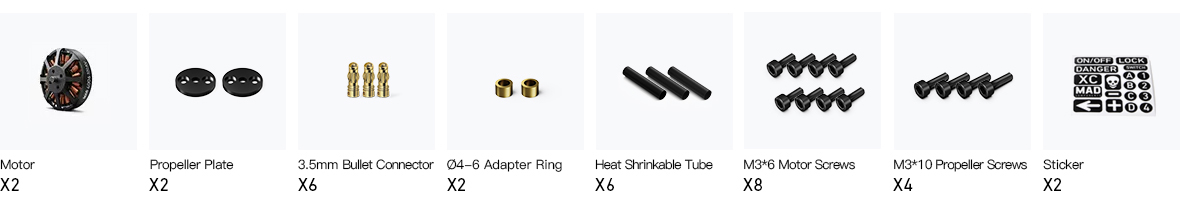

Accessories
More Information
| Manufacturer | MAD |
|---|
