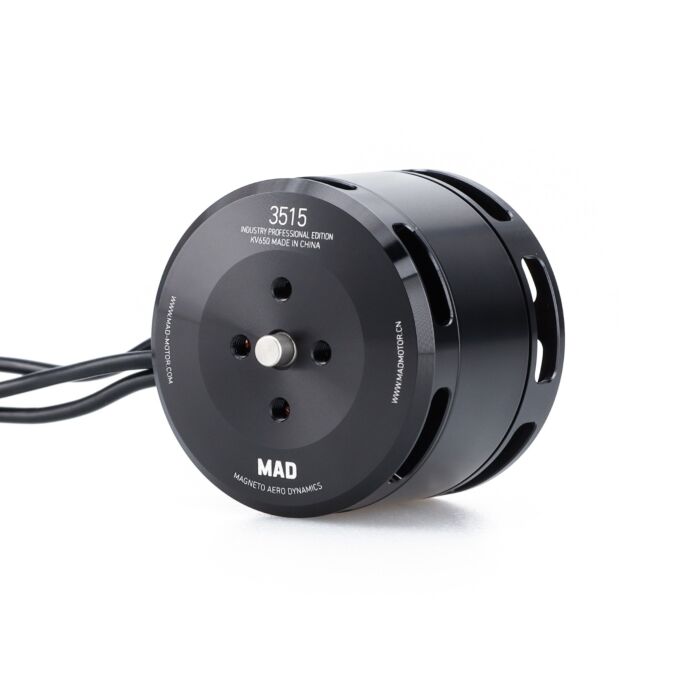

3515 IPE Drone Motor
About this product
About 3515 IPE
-
Single-rotor payload capacity: 970–1700g
-
Optimized propeller range: 13–16" carbon fiber
-
Max thrust per axis: 3600g (3.6kg)
-
Weight: Just 152g per motor
Performance Highlights
✔ Industrial-grade thrust – Handles heavy payloads with ease
✔ Precision-balanced design – Ultra-smooth operation for vibration-free performance
✔ Optimized thermal management – Efficient cooling for extended flight times
Ideal Applications
-
Professional cinematography – Supports heavy camera gimbals (e.g., RED Komodo, Sony FX6)
-
Industrial inspections – Perfect for LiDAR and multisensor payloads
-
Search & rescue – Reliable performance in critical missions
Technical Superiority
-
Aerospace-grade materials
-
IP35rated for dust/water resistance
-
Compatible with 6S battery systems
Customization Available
-
KV options tailored to your needs
-
Bulk pricing for enterprise clients

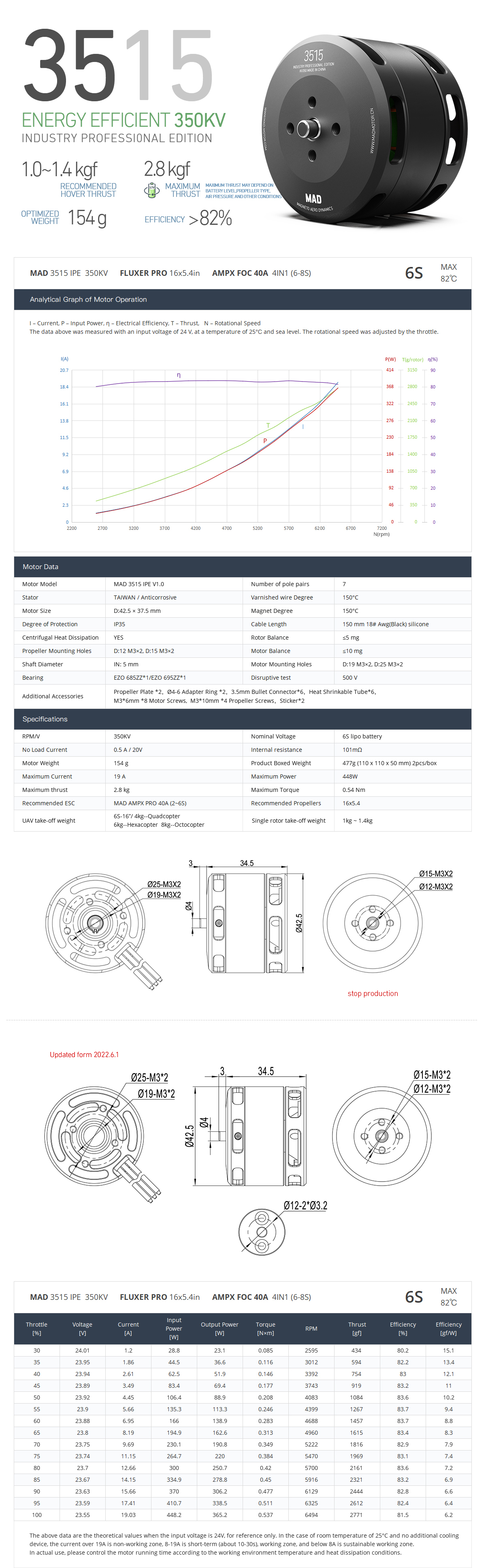

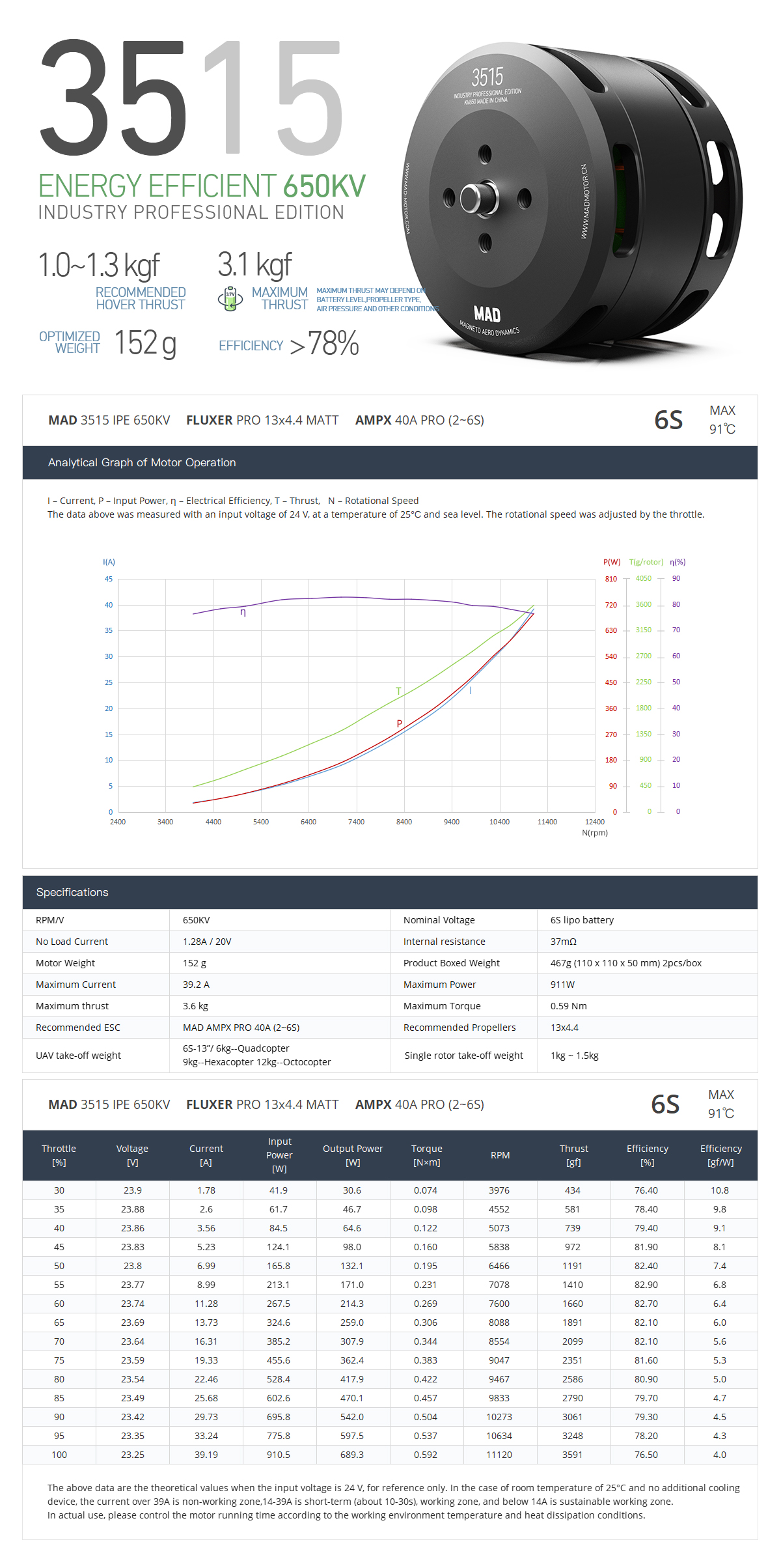

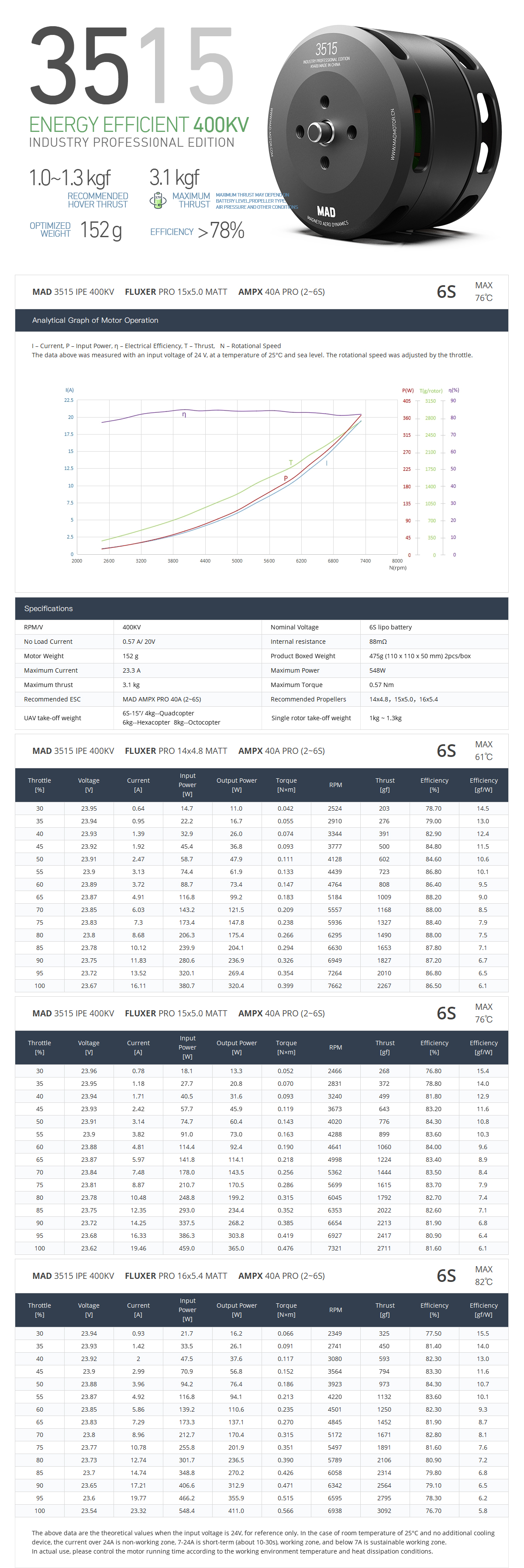

Motor Data |
|||
| Motor Model | MAD 3515 IPE V1.0 | Number of pole pairs | 31 |
| Stator | Anticorrosive | Varnished wire Degree | 150°C |
| Motor Size | D:42.5 × 37.5 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 18# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×2, D:15 M3×2 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 5 mm | Motor Mounting Holes | D:19 M3×2, D:25 M3×2 |
| Bearing | 685ZZ*1 / 695ZZ*1 | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

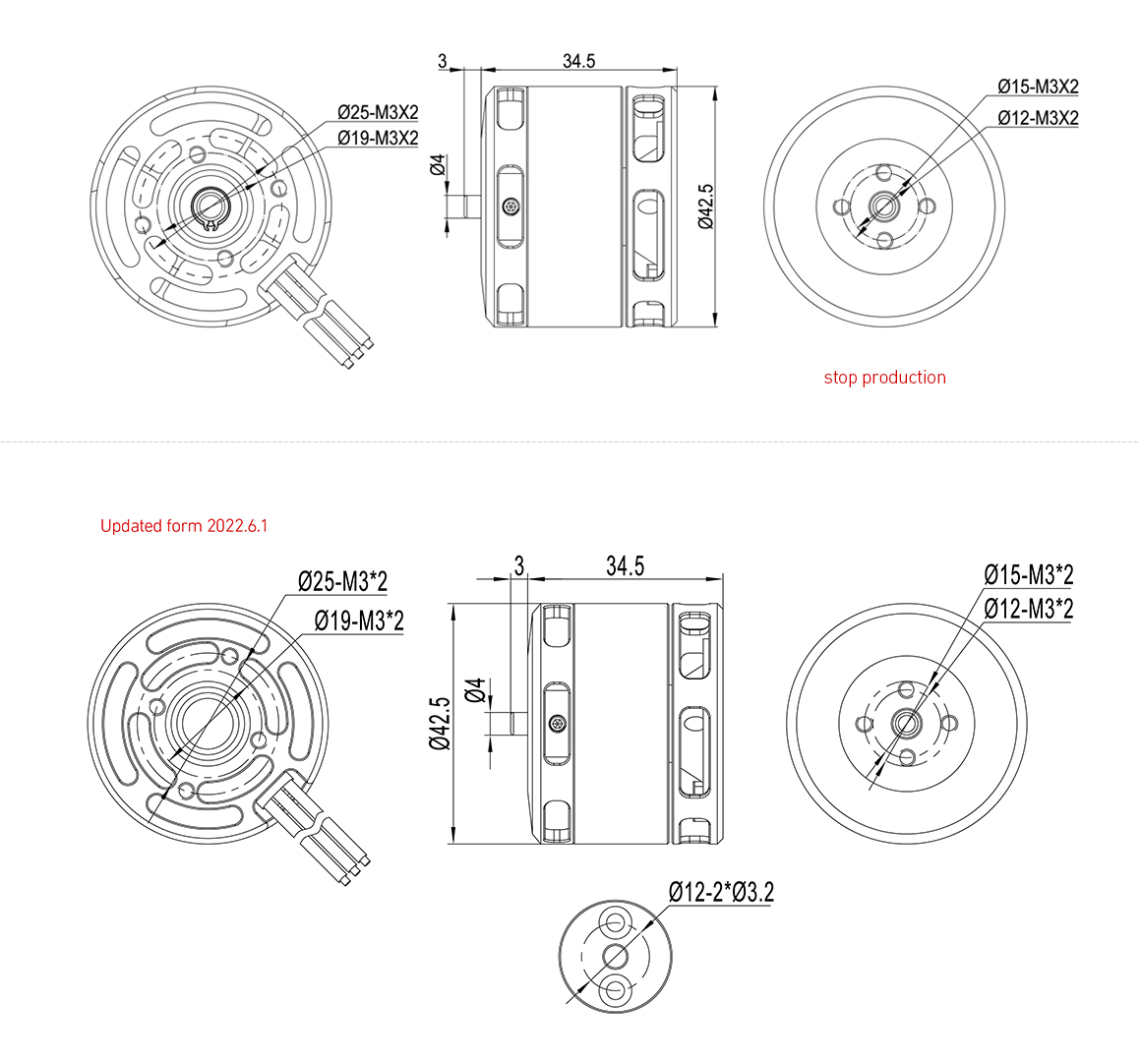

Drawing and mount holes
___________________________________________________________________________________________________________________________

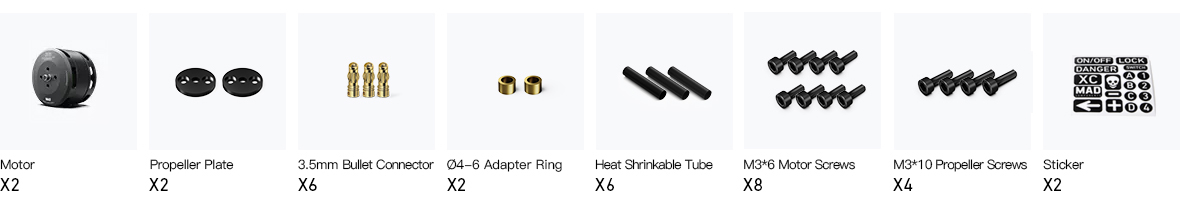

Accessories
