MAD 3506 IPE Drone Motor – Industry Professional UAV Motor

MAD 3506 IPE Drone Motor – Industry Professional Edition

As low as: $56.00

only left for same day shipping. Order now!

MAD 3506 IPE Drone Motor – Industry Professional Edition

The MAD 3506 IPE (400/460/650KV) is a precision-engineered brushless UAV motor designed for professional single-rotor payload platforms and industrial multirotor applications. Weighing just 87.3g and delivering up to 1600g of maximum thrust (depending on KV and propeller selection), it provides stable lift performance for 11–14" carbon fiber propellers. Developed through controlled testing, it features refined rotor balance and optimized electromagnetic design for efficient, high-load operation. Ships from our U.S. distribution center for fast domestic delivery.

About 3506 IPE

Positioning:

Designed for single-rotor payloads of 320–720g
Optimized for 11–14" carbon fiber propellers
Delivers max thrust of 1600g per motor
Ultra-lightweight at only 87.3g per motor

Key Features:
✔ High thrust-to-weight ratio for agile performance
✔ Precision-balanced for smooth, efficient operation
✔ Ideal for heavy-lift drones, cinematography, and industrial applications

Perfect for:

Professional aerial photography
High-efficiency payload delivery
Demanding industrial UAV platforms

(Need custom KV options or bulk pricing? Contact us!)

Motor Data
Motor Model	MAD 3506 IPE V1.0	Number of pole pairs	7
Stator	Anticorrosive	Varnished wire Degree	150°C

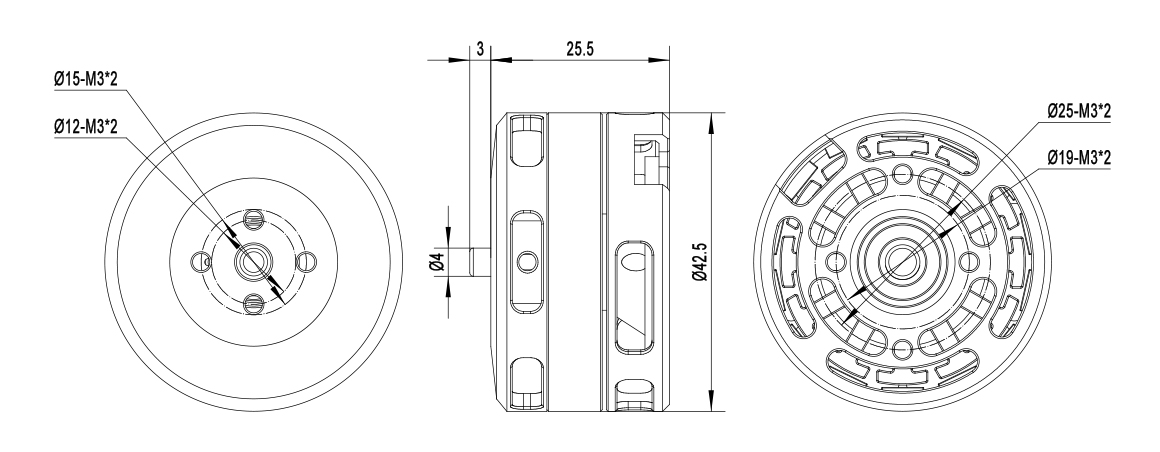

Motor Size	D:42.5 × 28.5 mm	Magnet Degree	150°C
Degree of Protection	IP35	Cable Length	150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×2, D:15 M3×2	Motor Balance	≤10 mg
Shaft Diameter	IN: 4 mm	Motor Mounting Holes	D:19 M3×2 D:25 M3×2
Bearing	694ZZ*2	Disruptive test	500 V
