2806 EEE Drone Motor
2806 EEE Drone Motor
About this product
About MAD 2806 EEE V1.0
High-Endurance Motor for Aerial Survey & Mapping
✔ 6S Voltage – Optimized for long-endurance flights
✔ Ultra-Lightweight – Advanced hollow design for weight reduction & fast heat dissipation
✔ Precision Stator – 12N14P multi-slot design for smooth torque & high efficiency
✔ Aerospace-Grade Material – 6061-T6 aluminum alloy for superior strength & safety
✔ Optimized Magnetic Circuit – Simulated flux density & magnetic containment for low power loss
✔ Premium EZO Bearings – Imported high-durability bearings for stable rotation & impact resistance
Ideal for:
-
Professional aerial photography & surveying
-
Long-range mapping & exploration
-
training quadcopters.
Motor Data |
|||
| Motor Model | MAD 2806 EEE V1.0 | Number of pole pairs | 7 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:35 × 19.8 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 50 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤3 mg |
| Propeller Mounting Holes | D:12 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 4 mm | Motor Mounting Holes | D:19 M3×4 |
| Bearing | 694ZZ | Disruptive test | 500 V |
___________________________________________________________________________________________________________________________

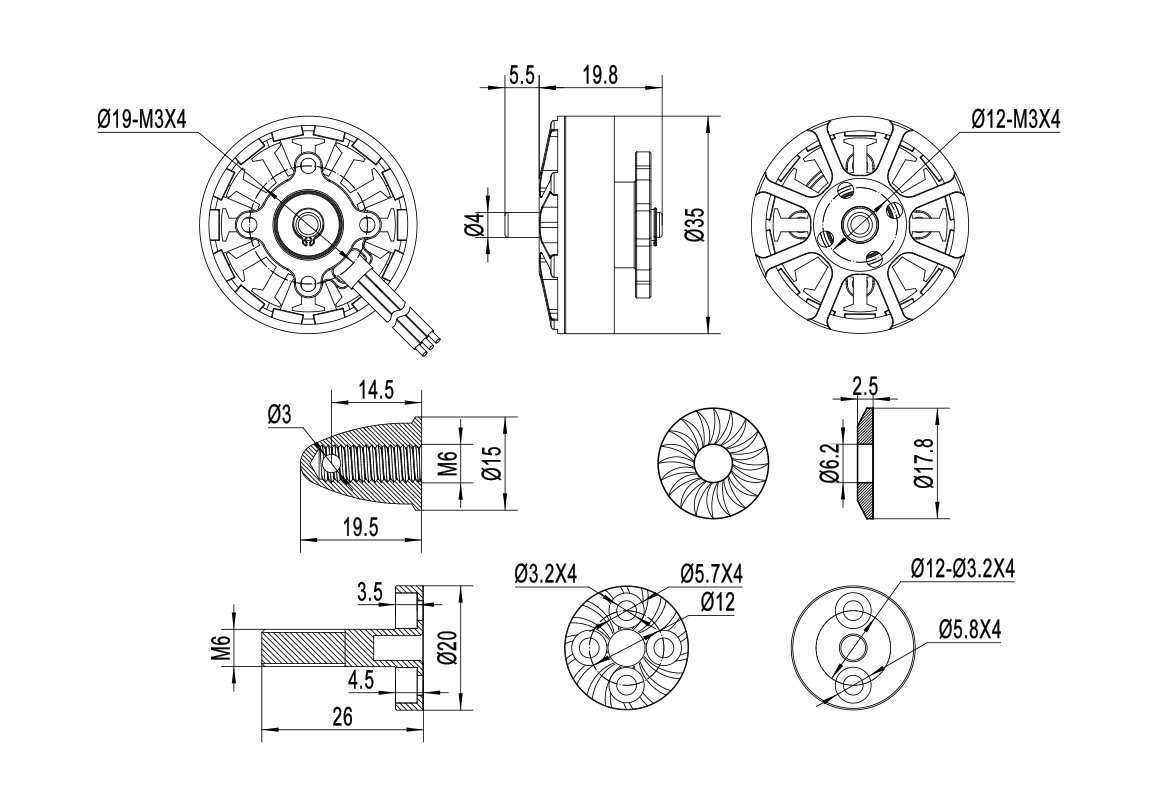

Drawing and mount holes
